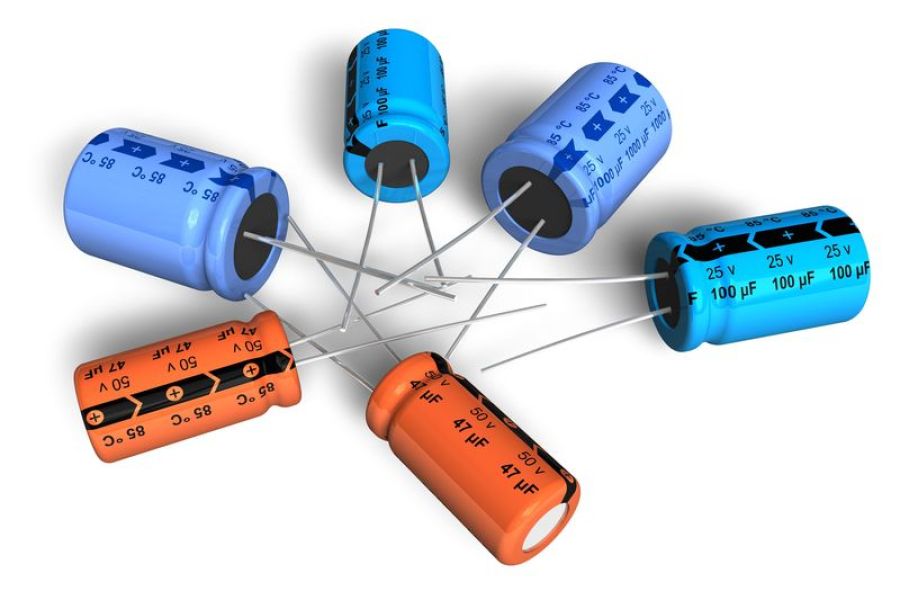

100/25v Electrolytic Capacitor
The 100µF / 25V Electrolytic Capacitor is a polarized capacitor commonly used for filtering, smoothing, and energy storage in electronic circuits. Its 100µF capacitance and 25V rating make it suitable for power supplies, amplifiers, control boards, and general-purpose electronic applications.
100µF / 25V Electrolytic Capacitor Specifications
| Parameter | Specification |
|---|---|
| Component Type | Aluminum Electrolytic Capacitor |
| Capacitance | 100 µF |
| Rated Voltage | 25 VDC |
| Capacitance Tolerance | ±20% |
| Polarization | Polarized |
| Dielectric Type | Aluminum Electrolytic |
| Operating Temperature | -40°C to +85°C (typical) |
| Leakage Current | ≤ 0.03CV or 4 µA (whichever is greater) |
| ESR | Series-dependent |
| Mounting Type | Through-Hole (Radial) |
| Lead Spacing | 2.5–5.0 mm (typical) |
| Lifetime | 1,000–5,000 hours at rated temperature |
| Case Material | Aluminum Can with PVC Sleeve |
| Applications | Power Supply Filtering, Decoupling, Coupling, Energy Storage, Audio Circuits |
₹ 5.90
Brand
Color
Tags 100/25v electrolytic capacitor
capacitor
electrolytic
100/25v
Product Details
| Brand : | Keltron, Samwha |
| Color : | Blue, Saffron |
| Made In | India |
