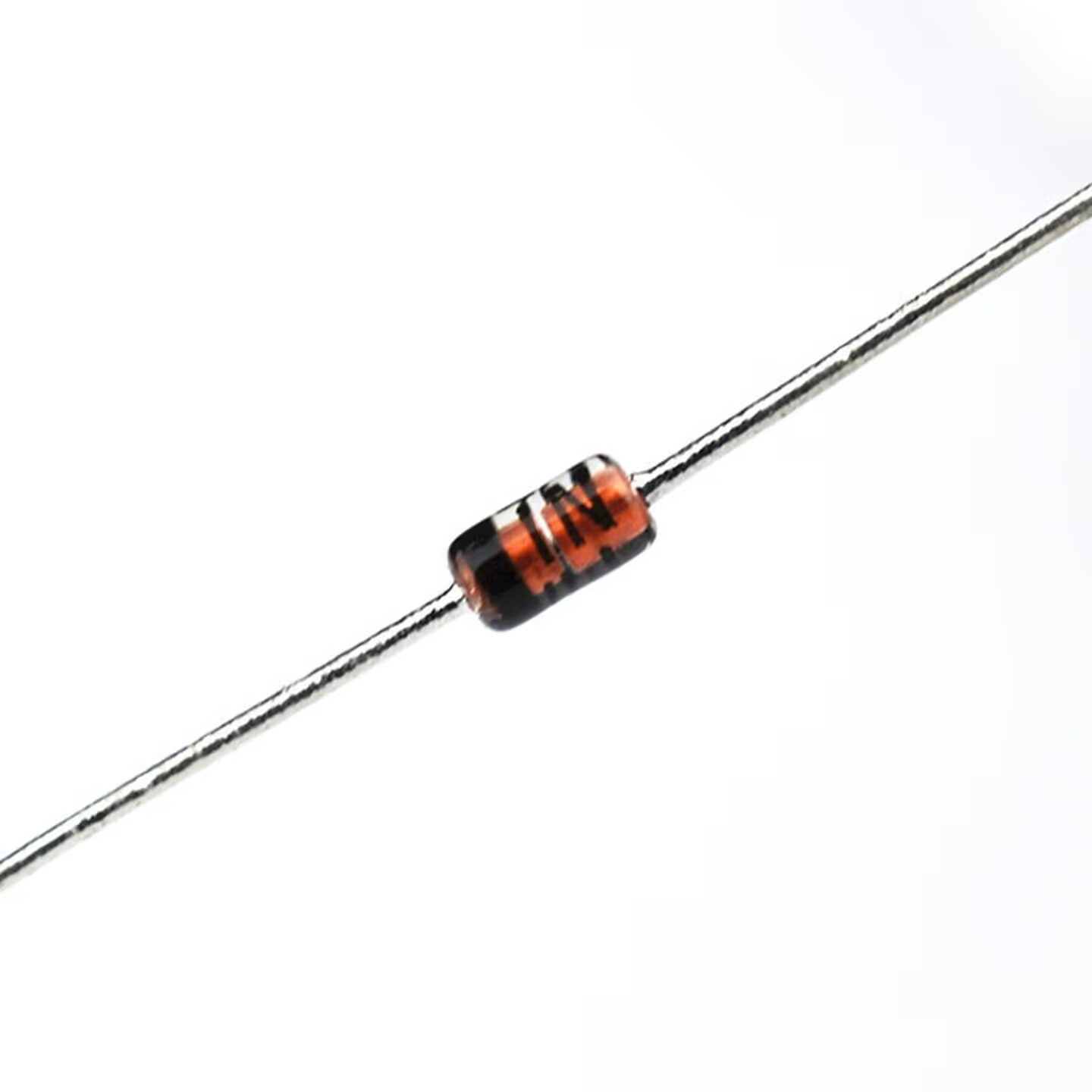

1N914 Diode

1N914 Diode

1N914 Switching Diode is a high-speed small-signal silicon switching diode designed for fast switching applications, signal processing, and general-purpose electronic circuits. With low forward voltage drop, fast reverse recovery time, and reliable performance, it is widely used in communication equipment, logic circuits, instrumentation, power supplies, and consumer electronics.

( No Reviews )

₹ 11.80

Order From Whatsapp
Tags 1N914 Diode 1N914 Switching Diode 1N914 Silicon Diode 1N914 High Speed Diode 1N914 DO-35 Diode 100V Switching Diode 200mA Diode Small Signal Diode Silicon Switching Diode Fast Recovery Diode Through Hole Diode DO-35 Axial Diode Signal Switching Diode Logic Circuit Diode Electronic Components General Purpose Diode Communication Circuit Diode Instrumentation Diode High Speed Electronic Diode Semiconductor Diode
No Cancellation
No Returnable
Product Details
:
Parameter Specification
Model 1N914
Product Type Small Signal Switching Diode
Diode Type Silicon Switching Diode
Repetitive Peak Reverse Voltage (VRRM) 100 V
Reverse Voltage (VR) 75 V
Forward Continuous Current (IF) 200 mA
Peak Forward Surge Current (IFSM) 2 A
Forward Voltage (VF) 1.0 V Max. @ 10 mA
Reverse Current (IR) ≤25 nA @ 20 V
Reverse Recovery Time (trr) 4 ns Max.
Power Dissipation 500 mW
Operating Junction Temperature -65°C to +175°C
Package Type DO-35 (Axial Lead)
Mounting Type Through Hole
Polarity Cathode Band Marked
Features High-speed switching, low leakage current, low capacitance, fast recovery, compact design
Typical Applications Signal Switching, Logic Circuits, High-Speed Switching, Communication Equipment, Instrumentation, Consumer Electronics, General Purpose Electronic Circuits
Compliance RoHS Compliant (Manufacturer Dependent)
