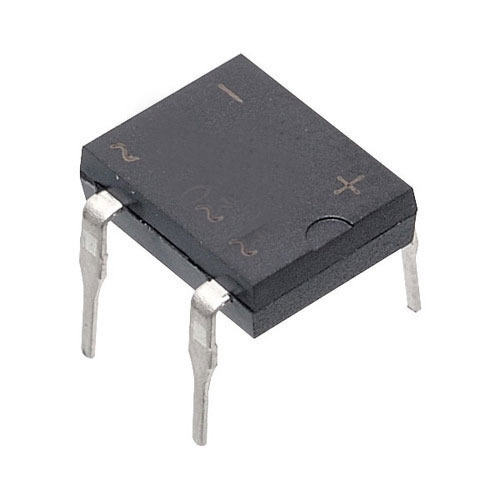

DB105 Bridge Diode
The DB105 is a 1A, 600V single-phase bridge rectifier designed to convert alternating current (AC) into direct current (DC) in electronic circuits. It offers reliable performance, low leakage current, and high surge current capability in a compact DIP package, making it ideal for power supplies, battery chargers, adapters, and general-purpose rectification applications.
DB105 Specifications
| Parameter | Specification |
|---|---|
| Product Name | DB105 Bridge Rectifier |
| Device Type | Single-Phase Bridge Rectifier |
| Maximum Repetitive Reverse Voltage (VRRM) | 600 V |
| Average Forward Rectified Current (IF(AV)) | 1.0 A |
| Peak Forward Surge Current (IFSM) | 50 A |
| Forward Voltage Drop (VF) | 1.1 V (typical) |
| Package Type | DB / DIP-4 |
| Mounting Type | Through-Hole |
| Operating Temperature | -55°C to +150°C |
| Applications | Power Supplies, Chargers, AC-DC Converters |
| HSN Code | 85411000 (Diodes, other than photosensitive or light-emitting diodes; includes bridge rectifiers) |
₹ 5.90
