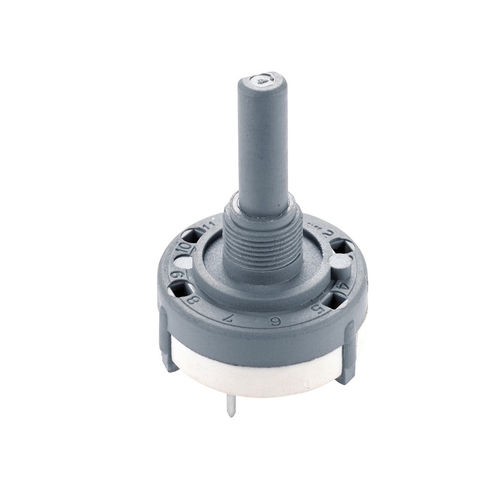

ERS-2013 Rotary Switch 13 Position

he ERS-2013 Rotary Switch is a compact binary-coded rotary switch designed for low-current signal selection in electronic circuits, industrial control systems, instrumentation, and communication equipment. Featuring 22.5° indexing, reliable switching performance, and a durable panel-mount design, it offers high insulation resistance, long electrical life, and silver-plated contacts for dependable operation.

( No Reviews )

₹ 206.50

Order From Whatsapp

Tags ers-2013 rotary switch rotary switch ers-2013 rotary switch

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	ERS-2013
Product Type	Binary Coded Rotary Switch
Switch Function	Binary Coded Rotary Selector
Indexing Angle	22.5°
Current Rating	150 mA
Voltage Rating	50 VAC/DC
Non-Switching Current Rating	500 mA
Mounting Style	Panel Mount
Mounting Method	Panel with Nut (Screw Type)
Panel Thickness	3.0 mm Max
Terminal Type	Solder Type
Contact Resistance	≤ 50 mΩ (Initial)
Insulation Resistance	≥ 25,000 MΩ at 500 VDC
Dielectric Strength	250 VAC for 1 minute
Electrical Life	10,000 Switching Cycles (Min.)
Operating Temperature	-25°C to +85°C
Soldering Temperature	270°C for 5 Seconds (Max.)
Body Material	Glass-Filled Nylon / PBT
Contact Material	Copper Alloy, Silver Plated
PCB Material	Glass Epoxy, Gold Plated
Shaft Colour	Black
Reference Standard	IEC 61058-1, UL 1054
Applications	Industrial Control Systems, Electronic Equipment, Instrumentation, Communication Devices, Control Panels
