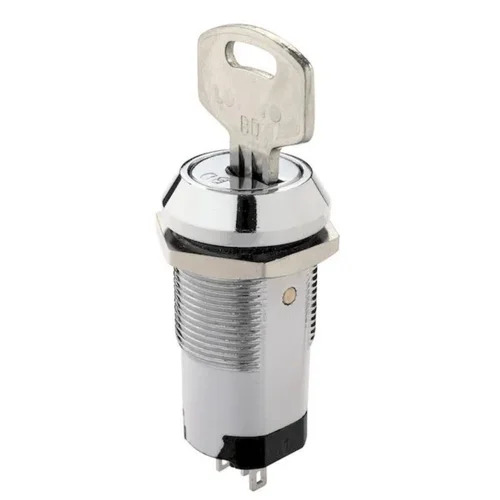

KLS-5/A Keylock Switch SPDT

KLS-5/A Keylock Switch SPDT

The KLS-5/A Key Lock Switch is a compact and reliable SPDT panel-mount key-operated switch designed for secure ON/OFF control in electrical and electronic equipment. Rated at 3A, 250VAC, it features a durable Mazak body, silver-plated contacts, and solder terminals for dependable performance. The key is removable in one position, making it ideal for industrial control panels, security systems, vending machines, access control equipment, and automation applications.

( No Reviews )

₹ 247.80 ₹ 295.00

Order From Whatsapp
Tags kls-5a keylock switch keylock switch kls 5a
No Cancellation
No Returnable
Product Details
:
Parameter Specification
Model KLS-5/A
Product Type Key Lock Switch
Switch Function Key Operated
Contact Arrangement SPDT (Single Pole Double Throw)
Key Removal Key Removable in 1 Position
Current Rating 3 A
Voltage Rating 250 VAC / 1 VA, 24 VDC
Mounting Style Panel Mount
Mounting Method Panel with Screw
Terminal Type Solder Type
Contact Resistance ≤ 10 mΩ (Initial)
Insulation Resistance ≥ 100 MΩ at 500 VDC
Dielectric Strength 1 kVAC for 1 minute
Electrical Life 10,000 Switching Cycles (Minimum)
Operating Temperature -25°C to +85°C
Soldering Temperature 270°C for 5 seconds (Max.)
Body Material Mazak
Terminal Material Copper, Silver Plated
Contact Material Silver & Copper, Silver Plated
Key Combinations Up to 48
Reference Standard IEC 61058-1, UL 1054
Compliance CE, RoHS (On Request)
Applications Industrial Control Panels, Security Systems, Access Control, Vending Machines, Automation Equipment, Electrical Panels
