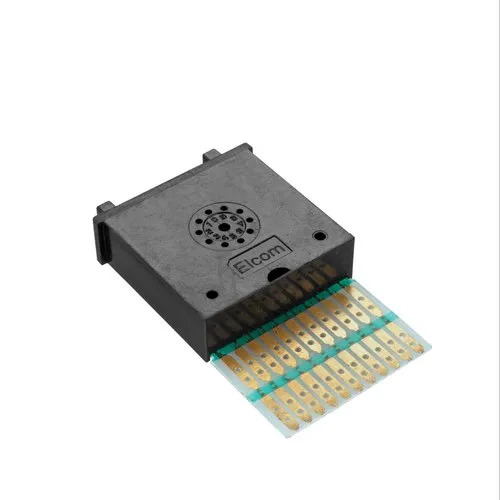

PCS-300E Push Coder Switch

The PCS-300E Push Coder Switch is a compact 30 mm panel-mount push coder switch with binary output (0–9) and an extended PCB for easy PCB mounting and wiring. It features a smooth push-wheel mechanism, snap-in panel mounting, gold-plated PCB contacts, and a rugged engineering thermoplastic housing for long-lasting performance. It is ideal for industrial control panels, automation systems, instrumentation, communication equipment, and process control applications.

( No Reviews )

₹ 442.50

Order From Whatsapp

Tags pcs-300e pcs 300e push coder switch coder switch pcs-300e push coder switch

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	PCS-300E
Product Type	Push Coder Switch
Series	PCS-30
Output Type	Binary Output
PCB Type	Extended PCB
Digit Positions	0 – 9
Switching Method	Push Wheel Selection
Current Rating	100 mA
Voltage Rating	50 VAC / 28 VDC
Continuous Current	1 A Max.
Mounting Style	Panel Mount
Mounting Method	Snap-in
Panel Thickness	0.8 – 2.0 mm
Height	30 mm
Terminal Type	Extended PCB Solder Type
Contact Resistance	≤ 200 mΩ (Initial)
Insulation Resistance	≥ 100 MΩ at 500 VDC
Dielectric Strength	500 VAC for 1 Minute
Electrical Life	10,000 Switching Cycles (Minimum)
Operating Temperature	-25°C to +85°C
Soldering Temperature	270°C for 5 Seconds (Max.)
Housing Material	Engineering Thermoplastic
End Bracket Material	Engineering Thermoplastic
PCB Material	Glass Epoxy, Gold Plated
Reference Standard	IEC 1020-5
Applications	Industrial Control Panels, Instrumentation, Automation Systems, Communication Equipment, Process Control Equipment, Electronic Devices
