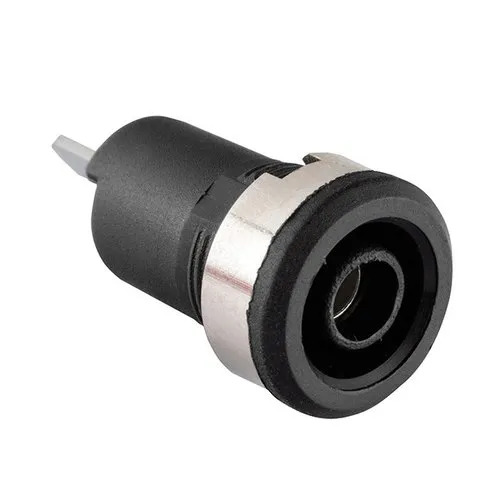

BS-10 Socket
The BS-10 is a 4 mm panel-mount banana socket (female connector) designed for secure and reliable electrical connections in test, measurement, and laboratory equipment. Rated at 10A, 250VAC, it features a nickel-plated brass contact, high-quality insulated thermoplastic body, and solder termination for excellent conductivity and long service life. It is widely used in power supplies, multimeters, electronic test benches, laboratory instruments, educational kits, audio equipment, and industrial control systems.
(
No Reviews )
₹ 29.50
Tags bs-10 socket
banana socket
bs-10 banana socket
bs-10
socket
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | BS-10 |
| Product Type | Banana Socket |
| Connector Type | 4 mm Banana Female Socket |
| Current Rating | 10 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Panel Mount |
| Mounting Hole Diameter | 12 mm |
| Termination Type | Solder Terminal |
| Contact Material | Nickel-Plated Brass |
| Insulation Material | High-Quality Thermoplastic |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Operating Temperature | -20°C to +85°C |
| Available Colors | Black, Red, Yellow, Green, Blue, White |
| Applications | Test & Measurement Equipment, Laboratory Instruments, Power Supplies, Audio Equipment, Educational Kits, Industrial Electronics |
