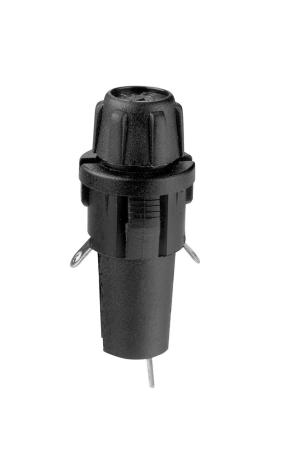

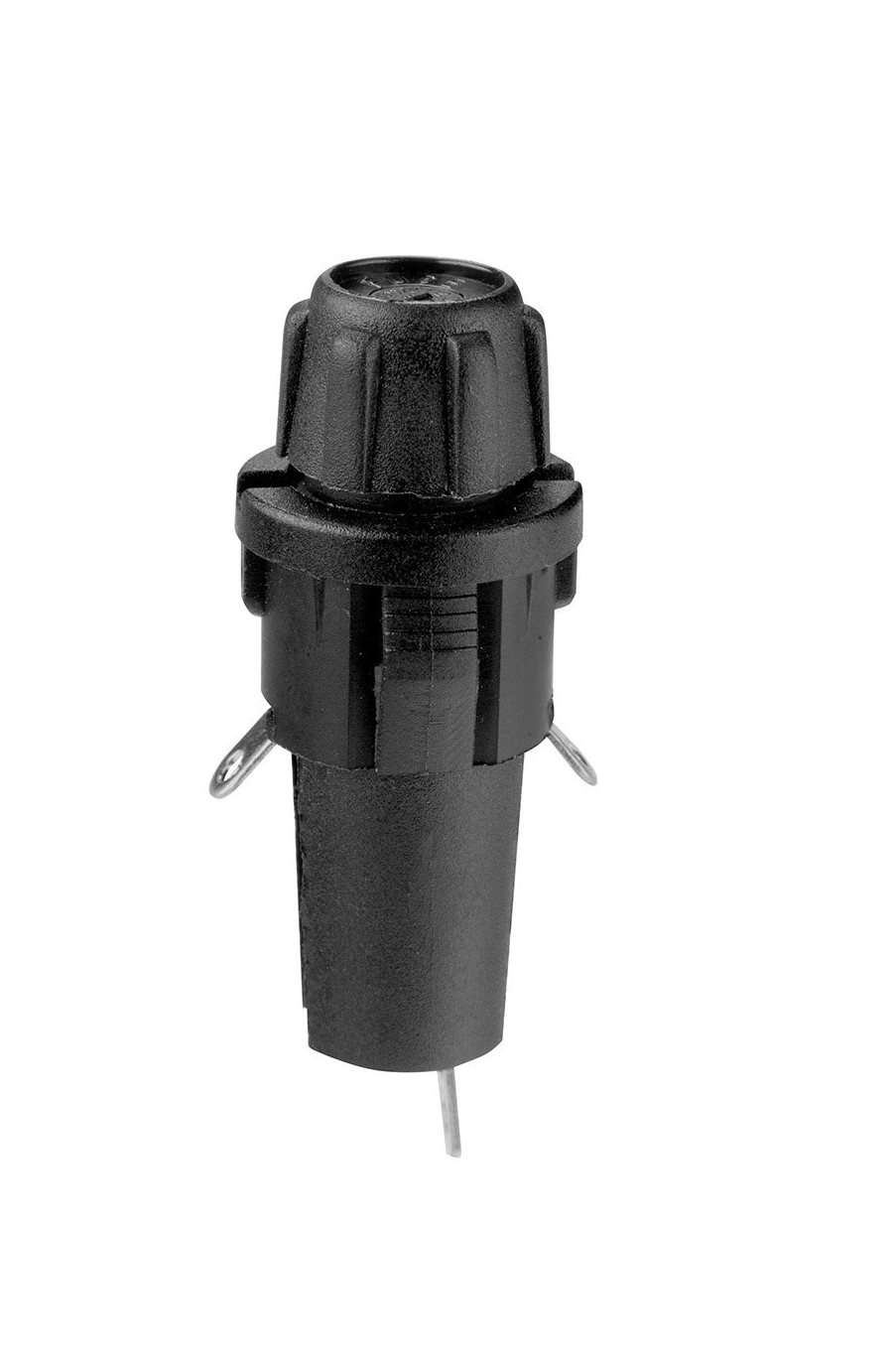

FH-1 Fuse Holder
The FH-1 Fuse Holder is a compact PCB-mounted fuse holder designed for 5×20 mm glass or ceramic fuses. It features durable spring clips that provide secure fuse retention and reliable electrical contact. Its through-hole design allows easy PCB installation, making it ideal for power supplies, electronic equipment, control circuits, and other applications requiring dependable overcurrent protection.
(
No Reviews )
₹ 11.80
Add FAQ
FH-1 Fuse Holder Specifications
| Parameter | Specification |
|---|---|
| Product Name | FH-1 Fuse Holder |
| Fuse Type Supported | 5×20 mm Glass/Ceramic Fuse |
| Rated Current | 10 A (typical) |
| Rated Voltage | 250 VAC |
| Mounting Type | PCB Mount |
| Terminal Type | Through-Hole PCB Pins |
| Contact Material | Phosphor Bronze, Nickel-Plated |
| Insulation Material | Flame-Retardant Thermoplastic |
| Fuse Retention | Spring Clip |
| Operating Temperature | -20°C to +85°C |
| Applications | Power Supplies, Consumer Electronics, Instrumentation, Industrial Control Circuits |
No FAQs Found
