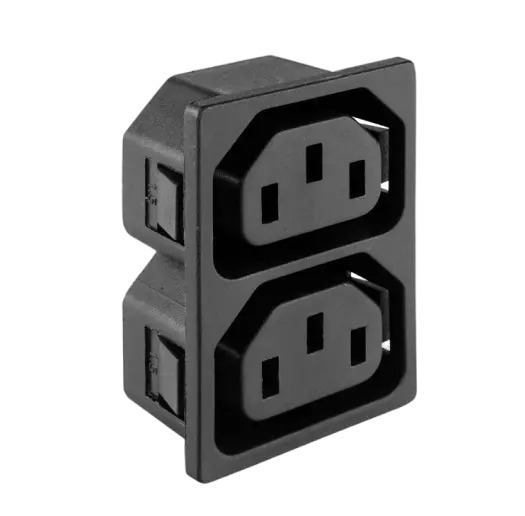

EMO-12 Mains Outlet
The EMO-12 is a high-quality IEC 60320 C13 panel-mount AC mains outlet (female receptacle) designed for reliable AC power output in industrial and electronic equipment. Rated at 10A (VDE) / 20A (UL), 250VAC, it features a snap-in panel mounting, solder/Fast-on/PCB terminal options, and a durable glass-filled Nylon-6 housing. It is ideal for SMPS, UPS systems, industrial control panels, medical equipment, laboratory instruments, telecom equipment, and consumer electronics.
(
No Reviews )
₹ 206.50
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMO-12 |
| Product Type | IEC AC Mains Outlet |
| Connector Type | IEC 60320 C13 Female Outlet |
| Current Rating | 10A (VDE) / 20A (UL, cULus) |
| Voltage Rating | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount |
| Mounting Method | Snap-in Type |
| Panel Thickness | Standard 1.5 mm (1.0 mm, 2.0 mm & 3.0 mm options available) |
| Terminal Type | Solder / Fast-on (4.8 mm or 6.3 mm) / PCB |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Withdrawal Force | 3.5 – 5.0 kg |
| Operating Temperature | 0°C to +70°C (VDE), 0°C to +65°C (UL) |
| Housing Material | Nylon-6, Glass Filled (GF20%), UL94 V-2 |
| Terminal Material | Tin-Plated Brass |
| Reference Standards | IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3 |
| Approvals | VDE, cULus |
| Compliance | CE, RoHS |
| Applications | SMPS, UPS Systems, Industrial Control Panels, Medical Equipment, Laboratory Instruments, Telecom Equipment, Consumer Electronics, Networking Equipment |
