EMO-12G Mains Outlet

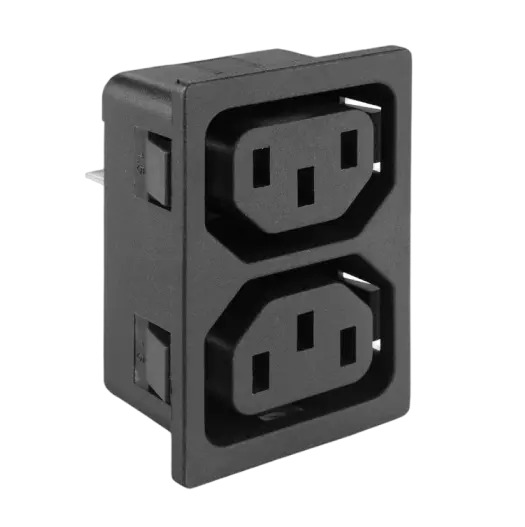

The EMO-12G is a 2-gang IEC 60320 C13 panel-mount AC mains outlet (female receptacle) designed to provide two independent AC power output connections in a compact form factor. Rated at 10A (VDE) / 20A (UL), 250VAC (15A individual & 20A combined), it features a snap-in panel mounting, solder or Fast-on terminals, and a durable glass-filled Nylon-6 housing. It is widely used in Power Distribution Units (PDUs), UPS systems, server racks, industrial control panels, medical equipment, telecom equipment, and laboratory instruments.
(
No Reviews )
₹ 236.00
Tags emo-12g
emo
emo-12g maons outlet
emo-12g outlet
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMO-12G |
| Product Type | IEC AC Mains Outlet |
| Connector Type | IEC 60320 C13 Female Outlet |
| Configuration | 2-Gang (Dual C13 Outlets) |
| Current Rating | 10A (VDE) / 20A (UL) (15A Individual & 20A Combined) |
| Voltage Rating | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount |
| Mounting Method | Snap-in Type |
| Panel Thickness | Standard 1.5 mm (Other thicknesses available on request) |
| Terminal Type | Solder Type / Fast-on |
| Withdrawal Force | 3.5 – 5.0 kg |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | 0°C to +70°C (VDE), 0°C to +65°C (UL); up to +125°C available on request |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Nylon-6, Glass Filled (GF20%), UL94 V-2 |
| Terminal Material | Brass, Tin Plated |
| Reference Standards | IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3 |
| Approvals | VDE, cULus |
| Compliance | CE, RoHS |
| Applications | PDUs, Server Racks, UPS Systems, Industrial Control Panels, Medical Equipment, Laboratory Instruments, Telecom Equipment, Automation Systems |
