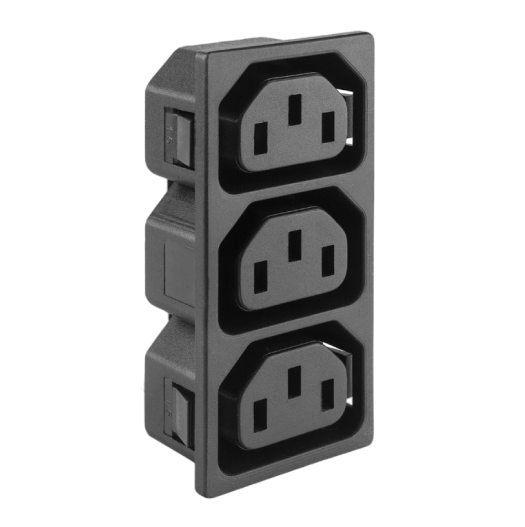

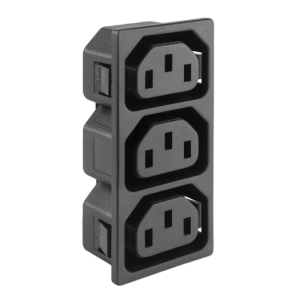

EMO-13 Mains Outlet
The EMO-13 is a robust IEC 60320 C13 panel-mount AC mains outlet (female receptacle) designed for dependable AC power output in industrial and commercial equipment. Rated at 10A (VDE) / 20A (UL), 250VAC, it features a snap-in panel mounting, solder or Fast-on terminals, and a durable glass-filled Nylon-6 housing. Its high-retention design and international safety approvals make it ideal for UPS systems, power supplies, industrial control panels, medical equipment, laboratory instruments, telecom equipment, and automation systems.
(
No Reviews )
₹ 295.00
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMO-13 |
| Product Type | IEC AC Mains Outlet |
| Connector Type | IEC 60320 C13 Female Outlet |
| Current Rating | 10A (VDE) / 20A (UL) |
| Voltage Rating | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount |
| Mounting Method | Snap-in Type |
| Panel Thickness | Standard 1.5 mm (Other thicknesses available on request) |
| Terminal Type | Solder Type / Fast-on (4.8 × 0.8 mm) |
| Withdrawal Force | 3.5 – 5.0 kg |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | 0°C to +70°C (VDE), 0°C to +65°C (UL), up to +125°C on request |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Nylon-6, GF20%, UL94 V-2 |
| Terminal Material | Brass, Tin Plated |
| Reference Standards | IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3 |
| Approvals | VDE, cULus |
| Compliance | CE, RoHS |
| Applications | UPS Systems, SMPS, Industrial Control Panels, Medical Equipment, Laboratory Instruments, Telecom Equipment, Consumer Electronics, Automation Equipment |
