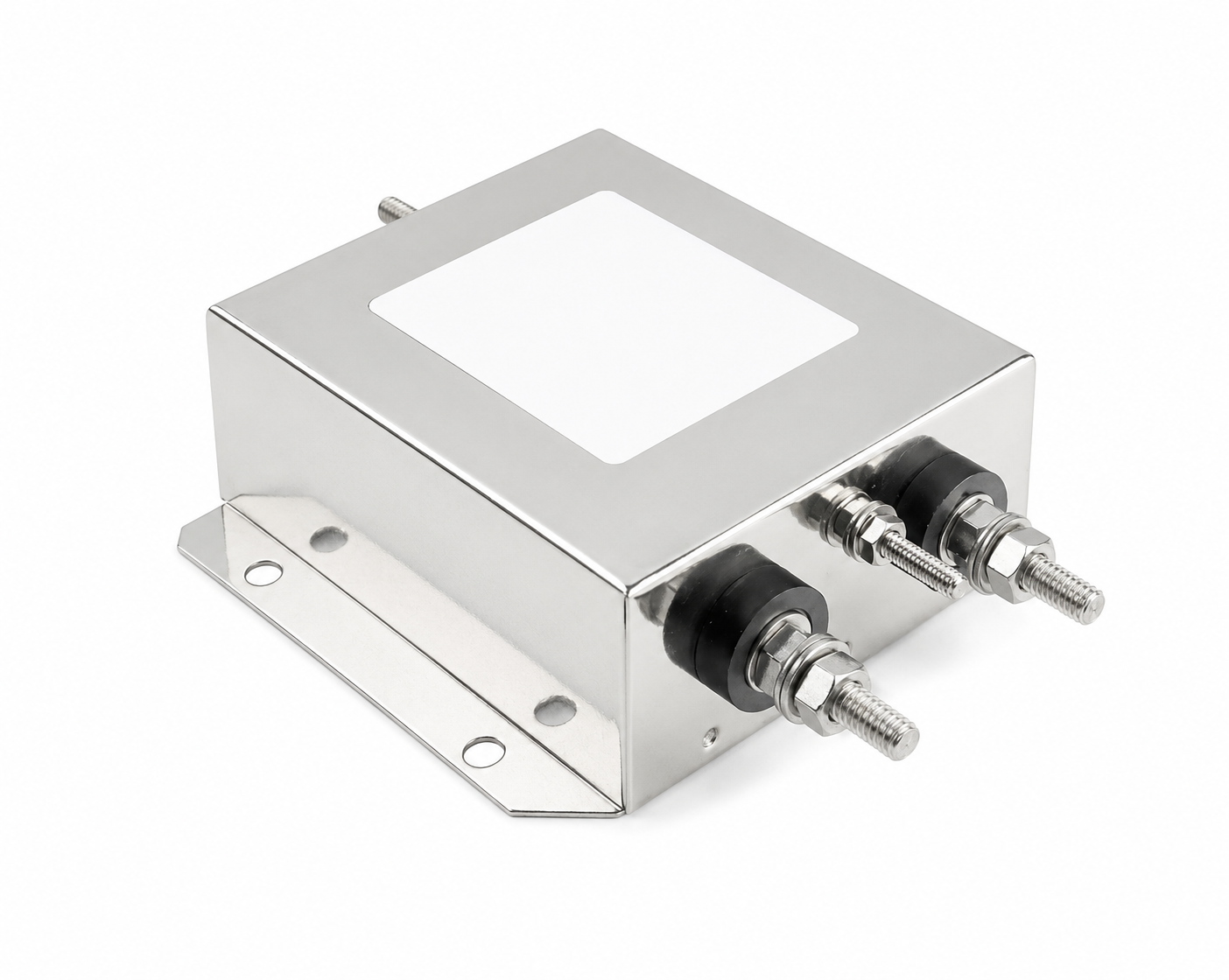

EP-612-50 Chassis Mounting Filter

EP-612-50 Chassis Mount EMI/RFI Filter is a high-current double-stage single-phase AC power line filter designed for superior suppression of electromagnetic interference (EMI) and radio frequency interference (RFI). Rated at 50A, it provides excellent attenuation for demanding industrial and telecom applications while ensuring reliable EMC performance through its rugged chassis-mount metal enclosure.

( No Reviews )

₹ 236.00

Order From Whatsapp

Tags EP-612-50 Chassis Mounting Filter EP-612-50 EMI Filter EP-612-50 RFI Filter EP-612-50 Power Line Filter 50A EMI Filter Double Stage EMI Filter Chassis Mount EMI Filter AC Line EMI Filter AC Power Line Filter Single Phase EMI Filter 120VAC EMI Filter 250VAC EMI Filter High Current EMI Filter Industrial EMI Filter Telecom EMI Filter Electrical Panel EMI Filter Power Distribution EMI Filter Conducted EMI Filter EMI Noise Suppression Filter Electromagnetic Interference Filter Radio Frequency Interference Filter Power Supply EMI Filter Chassis Mounted Power Filter Elcom EP-612-50 Filter EMI Filter India

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	EP-612-50
Product Type	EMI/RFI Power Line Filter
Filter Type	Double Stage EMI Filter
Mounting Type	Chassis Mount
Rated Voltage	120/250 VAC
Frequency	50/60 Hz
Phase	Single Phase
Rated Current	50 A
Input Connection	Screw Lead Through (M4)
Output Connection	Screw Lead Through (M4)
Leakage Current	2 × 0.3 mA
High Voltage Test	2 kVAC for 60 seconds (Line & Neutral to Earth)
Insulation Resistance	≥300 MΩ at 500 VDC
Maximum Voltage Drop	1 V
Operating Temperature	0°C to +85°C
Housing	Nickel-Plated CRCA Metal Chassis
Function	Suppresses conducted EMI/RFI noise on AC power lines
Features	Double-stage filtering, high attenuation, low leakage current, rugged metal enclosure
Typical Applications	Industrial Equipment, Telecom Systems, Electrical Control Panels, Power Distribution Systems, General Electronic Equipment
Compliance	CE, CSA & RoHS
