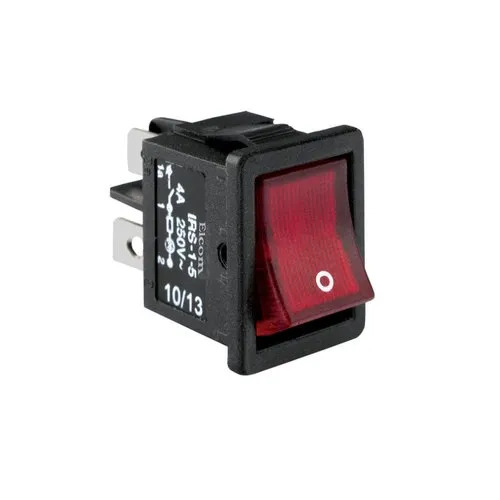

IRS-1 Rocker Switch 4Amp DPST
The IRS-1 Rocker Switch is a compact illuminated DPST panel-mount rocker switch designed for reliable ON/OFF switching in electrical and electronic equipment. Rated at 4A, 250VAC, it features a snap-in mounting design, silver-plated contacts, and an illuminated rocker for clear power indication. With its durable polyamide housing and long electrical life, it is ideal for home appliances, power supplies, industrial control panels, and electrical equipment.
(
No Reviews )
₹ 35.40
Tags irs-1
rocker
switch
rocker switch
irs-1 rocker switch
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | IRS-1 |
| Product Type | Illuminated Rocker Switch |
| Switch Function | ON/OFF |
| Contact Arrangement | DPST (Double Pole Single Throw) |
| Current Rating | 4 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Panel Mount |
| Mounting Method | Snap-in |
| Terminal Type | Solder Type / Fast-on 4.8 × 0.8 mm |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | 1.5 kVAC for 1 minute |
| Electrical Life | 10,000 Switching Cycles (Minimum) |
| Operating Temperature | -20°C to +85°C |
| Soldering Temperature | 270°C for 5 seconds (Max.) |
| Housing Material | Polyamide |
| Contact Material | Brass/Copper with Silver Plating |
| Rocker Colours Available | Red, Green, Amber |
| Housing Colour | Black |
| Product Weight | 4.6 g |
| Reference Standard | IEC 61058-1, UL 1054 |
| Applications | Home Appliances, Power Supplies, Industrial Control Panels, Electrical Equipment, Automation Panels |
