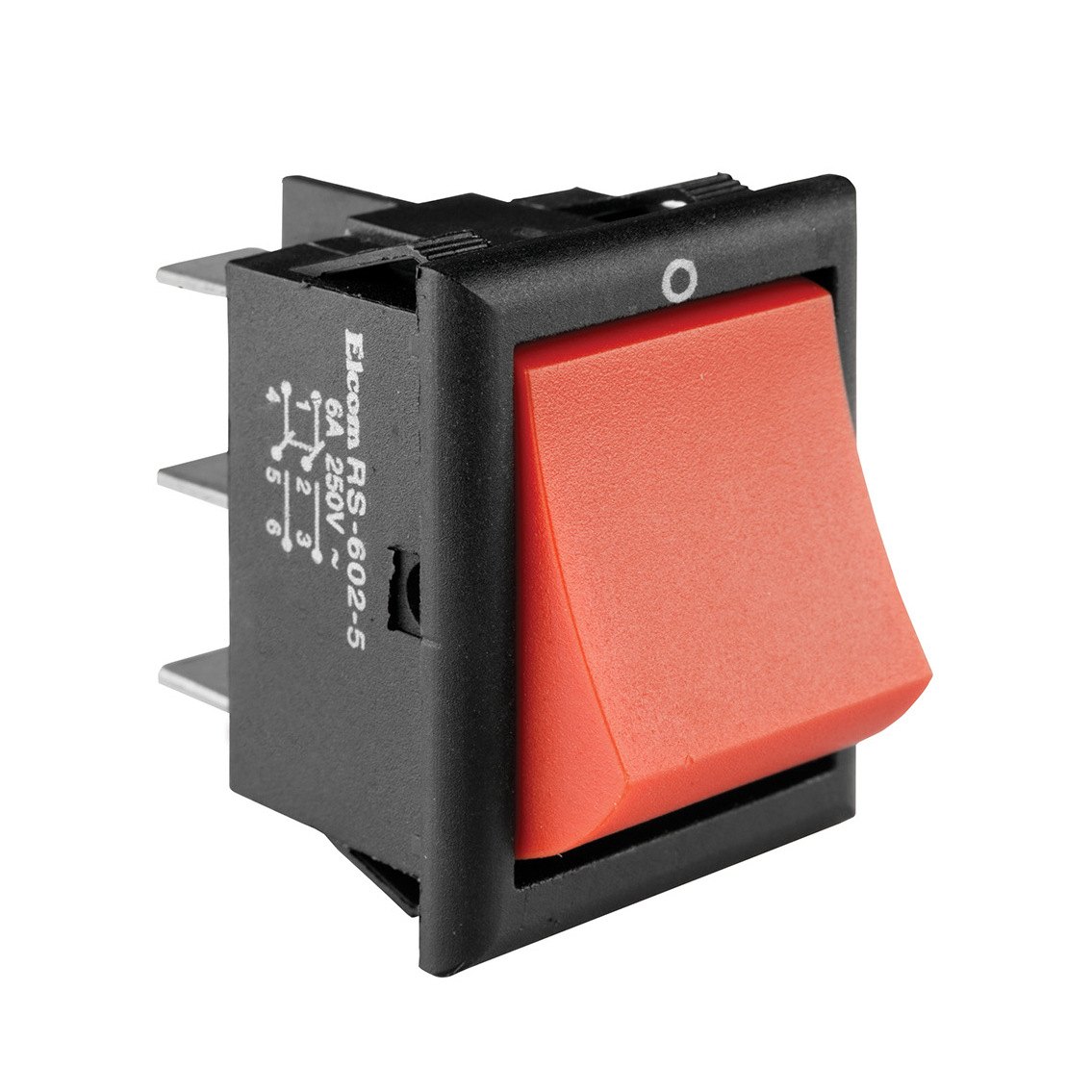

RS-602 Rocker Switch 6Amp DPDT

The RS-602 Rocker Switch is a robust non-illuminated DPDT (Double Pole Double Throw) panel-mount rocker switch designed for reliable ON-ON switching in AC-powered equipment. Rated at 6A, 250VAC, it features a snap-in mounting design, silver-plated contacts, and a durable nylon housing for long-lasting performance. It is ideal for industrial control panels, power supplies, automation systems, electrical equipment, and home appliances.

( No Reviews )

₹ 47.20

Order From Whatsapp

Tags rs-602 rocker switch rocker switch

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	RS-602
Product Type	Non-Illuminated Rocker Switch
Switch Function	ON-ON
Contact Arrangement	DPDT (Double Pole Double Throw)
Current Rating	6 A
Voltage Rating	250 VAC
Mounting Style	Panel Mount
Mounting Method	Snap-in
Panel Thickness	Refer to panel cut-out specification
Terminal Type	Solder Type / Fast-on 6.30 × 0.80 mm
Contact Resistance	≤ 10 mΩ (Initial)
Insulation Resistance	≥ 100 MΩ at 500 VDC
Dielectric Strength	1.5 kVAC for 1 minute
Electrical Life	10,000 Switching Cycles (Minimum)
Operating Temperature	-25°C to +85°C
Soldering Temperature	270°C for 5 seconds (Max.)
Housing Material	Nylon
Rocker Material	Nylon (Non-Illuminated)
Terminal Material	Brass, Tin Plated
Contact Material	Silver / Copper, Silver Plated
Available Colours	Black, Red
Reference Standard	IEC 61058-1, UL 1054
Compliance	CE, RoHS (On Request)
Applications	Industrial Control Panels, Power Supplies, Automation Equipment, Electrical Panels, Home Appliances
