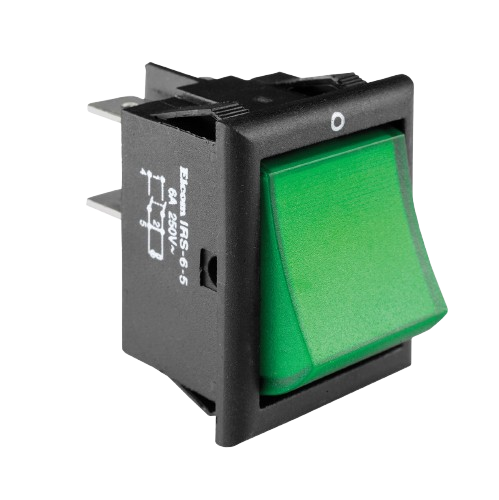

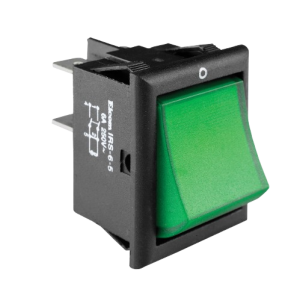

IRS-6 Rocker Switch 6 Amp SPST

The IRS-6 Rocker Switch is a heavy-duty illuminated DPST panel-mount rocker switch designed for reliable AC power switching in electrical and electronic equipment. Rated at 6A, 250VAC, it features a snap-in mounting design, silver-plated contacts, and an illuminated rocker for clear ON/OFF indication. Its robust nylon housing and long electrical life make it suitable for home appliances, power supplies, industrial control panels, automation systems, and electrical equipment

( No Reviews )

₹ 35.40

Order From Whatsapp

Tags irs-6 rocker switch rocker switch

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	IRS-6
Product Type	Illuminated Rocker Switch
Switch Function	ON/OFF
Contact Arrangement	DPST (Double Pole Single Throw)
Current Rating	6 A
Voltage Rating	250 VAC
Mounting Style	Panel Mount
Mounting Method	Snap-in
Panel Thickness	As per panel cut-out specification
Terminal Type	Solder Type / Fast-on 6.3 × 0.8 mm
Contact Resistance	≤ 10 mΩ (Initial)
Insulation Resistance	≥ 100 MΩ at 500 VDC
Dielectric Strength	1.5 kVAC for 1 minute
Electrical Life	10,000 Switching Cycles (Minimum)
Operating Temperature	-25°C to +85°C
Soldering Temperature	270°C for 5 seconds (Max.)
Housing Material	Nylon
Rocker Material	Nylon / Polycarbonate
Contact Material	Silver/Copper, Silver Plated
Terminal Material	Brass, Tin Plated
Illumination Colours	Red, Green, Amber
Non-Illuminated Colours	Black, Red, Green
Reference Standard	IEC 61058-1, UL 1054
Compliance	CE, RoHS (On Request)
Applications	Home Appliances, Power Supplies, Industrial Control Panels, Automation Equipment, Electrical Panels
