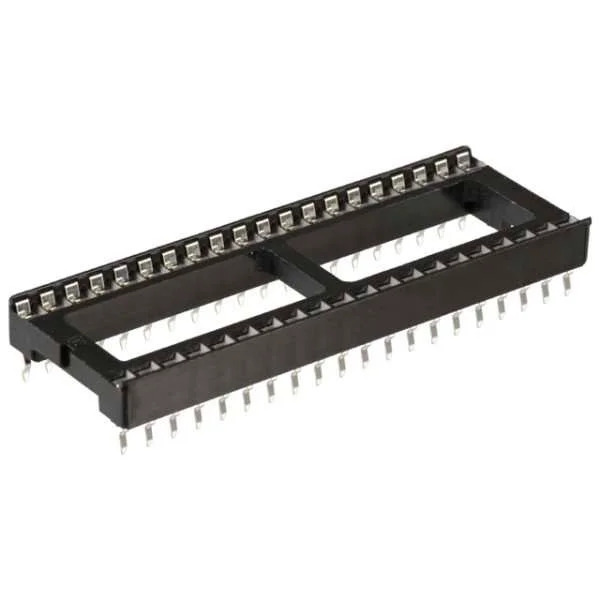

40 Pin Ic Socket
The 40-Pin IC Socket is a through-hole DIP-40 socket designed to securely hold 40-pin integrated circuits while allowing easy installation and replacement without soldering the IC directly to the PCB. It provides reliable electrical contact, protects ICs from heat damage during soldering, and is widely used in microcontroller development boards, industrial electronics, embedded systems, and electronic prototyping.
(
No Reviews )
₹ 5.90
Add FAQ
40-Pin IC Socket Specifications
| Parameter | Specification |
|---|---|
| Product Name | 40-Pin IC Socket |
| Number of Pins | 40 |
| Pin Pitch | 2.54 mm (0.1") |
| Contact Type | Dual Wipe / Precision (variant dependent) |
| Mounting Type | Through-Hole PCB |
| Package Compatibility | DIP-40 (Dual In-Line Package) |
| Contact Material | Phosphor Bronze, Tin-Plated or Gold-Plated |
| Insulator Material | High-Temperature Thermoplastic |
| Rated Current | 1 A (typical) |
| Rated Voltage | 250 V |
| Operating Temperature | -40°C to +105°C |
| Applications | Microcontrollers, Memory ICs, Logic ICs, Interface ICs, Electronic Prototyping |
