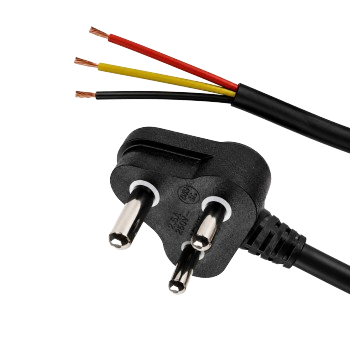

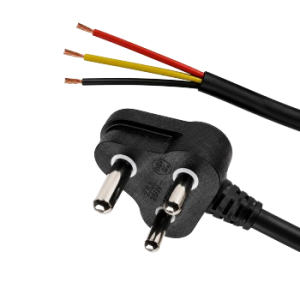

EMC-5100 Power Cord

EMC-5100 Power Cord is a heavy-duty 3-core moulded AC power cord rated at 10A, 250VAC, designed for safe and reliable power transmission in high-power electrical and electronic equipment. Manufactured with high-quality copper conductors and durable PVC insulation, it provides excellent electrical performance, flexibility, and long service life. It is ideal for UPS systems, servers, industrial equipment, medical devices, power supplies, and office automation equipment.

( No Reviews )

₹ 413.00

Order From Whatsapp

Tags EMC-5100 Power Cord EMC-5100 10A Power Cord EMC-5100 250VAC Power Cord EMC-5100 3 Core Power Cord 10A 250VAC Power Cord Heavy Duty Power Cord 3 Core Power Cable Moulded Power Cord AC Power Cord IEC Power Cord IEC Connector Cable PVC Power Cable Copper Power Cord UPS Power Cord Server Power Cord Computer Power Cord Medical Equipment Power Cord Industrial Power Cord Office Equipment Power Cord Laboratory Equipment Power Cord Power Supply Cable Elcom EMC-5100 Elcom Power Cord Power Cord India

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	EMC-5100
Product Type	Moulded Power Cord
Cable Type	3 Core Flexible Power Cord
Rated Voltage	250 VAC
Rated Current	10 A
Frequency	50/60 Hz
Number of Cores	3 Core
Conductor Size	3 × 1.0 sq.mm Copper
Conductor Material	100% Copper
Insulation Material	PVC
Outer Sheath	PVC
Plug Type	Moulded 3-Pin Plug
Connector Type	IEC Connector (Model Variant Dependent)
Standard Cable Length	1.5 m (Custom lengths available)
Insulation Resistance	≥100 MΩ @ 500 VDC
High Voltage Test	1.5 kVAC for 1 Minute
Operating Temperature	-20°C to +85°C
Reference Standards	IS 1293, IEC 60320-1, IEC 60320-3, IEC 60799
Compliance	CE, RoHS (On Request)
Features	Heavy-duty PVC insulation, high-quality copper conductors, moulded construction, excellent flexibility, reliable power transmission, long service life
Typical Applications	UPS Systems, Servers, Computers, Medical Equipment, Industrial Electronics, Office Automation Equipment, Laboratory Instruments, Power Supplies
