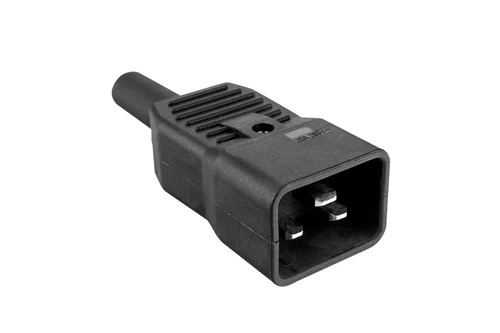

EMI-48 Rewirable Inlet
The EMI-48 is a rewirable IEC 60320 C20 plug connector designed for high-current AC power applications. Rated at 16A, 250VAC (IEC) with an extended rating of 20A, 250VAC, it features screw-type terminals, a durable glass-filled Nylon-6 housing, and an integrated cable clamp for secure cable retention. Designed for quick field wiring and long service life, the EMI-48 is ideal for UPS systems, servers, industrial machinery, medical equipment, laboratory instruments, telecom equipment, power distribution units (PDUs), and high-power electronic equipment.
(
No Reviews )
₹ 206.50
Tags emi-48
emi-48 rewirable intlet
rewirable inlet
inlet
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMI-48 |
| Product Type | Rewirable IEC Plug Connector |
| Connector Type | IEC 60320 C20 |
| Rated Current | 16A (IEC), 20A (Extended Rating) |
| Rated Voltage | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Cable Mount (Inline) |
| Termination Type | Screw-Type Terminals |
| Cable Size | 0.75 mm² to 1.5 mm² |
| Screw Torque | 4 kg·cm |
| Contact Material | Brass, Nickel Plated |
| Housing Material | Nylon-6, 20% Glass Filled (GF20%), UL94 V-2 |
| Cable Guide | PVC |
| Terminal Screws | Mild Steel, Zinc/Nickel Plated |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | 0°C to +70°C (IEC) |
| Reference Standards | IEC 60320-1, CSA C22.2 No.182.3 |
| Compliance | CE, RoHS |
| Applications | UPS Systems, Servers, Industrial Equipment, Medical Devices, Laboratory Instruments, Telecom Equipment, Power Distribution Units (PDUs), High-Power Electronics |
