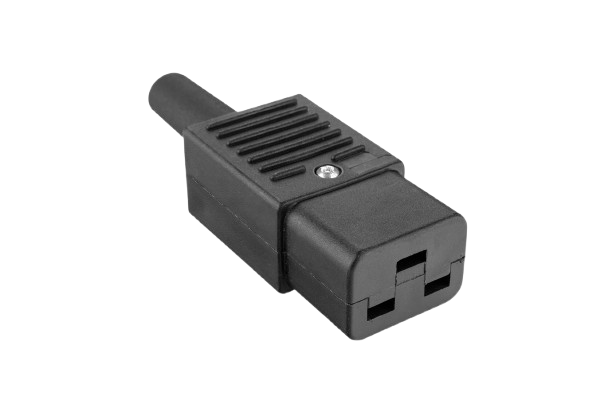

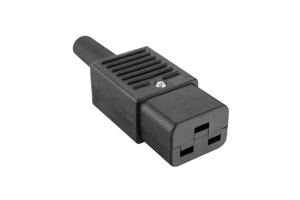

EMO-48 Rewirable Oulet
The EMO-48 is a rewirable IEC 60320 C19 female connector designed for high-current AC power applications. Rated at 16A, 250VAC with an extended rating of 20A, 250VAC, it features screw-type terminals, a durable glass-filled Nylon-6 housing, and an integrated cable clamp for secure cable retention. The connector is ideal for UPS systems, servers, power distribution units (PDUs), industrial machinery, laboratory instruments, medical equipment, and networking equipment, offering reliable electrical performance and compliance with international safety standards.
(
No Reviews )
₹ 236.00
Tags emo-40
emo-40 rewirable outlet
rewirable outlet
outlet
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMO-48 |
| Product Type | Rewirable IEC Connector |
| Connector Type | IEC 60320 C19 (Female) |
| Rated Current | 16A (IEC), 20A (Extended Rating) |
| Rated Voltage | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Cable Mount (Inline) |
| Termination Type | Screw-Type Terminals |
| Cable Size | 0.75 mm² to 1.5 mm² |
| Screw Torque | 5 kg·cm |
| Contact Material | Brass, Nickel Plated |
| Housing Material | Nylon-6, 20% Glass Filled (GF20%), UL94 V-2 |
| Cable Guide | PVC |
| Terminal Screws | Mild Steel, Zinc Plated |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | 0°C to +70°C (IEC) |
| Reference Standards | IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3 |
| Compliance | CE, RoHS |
| Applications | UPS Systems, Servers, PDUs, Industrial Equipment, Medical Devices, Laboratory Instruments, Telecom Equipment, High-Power Electronics |
