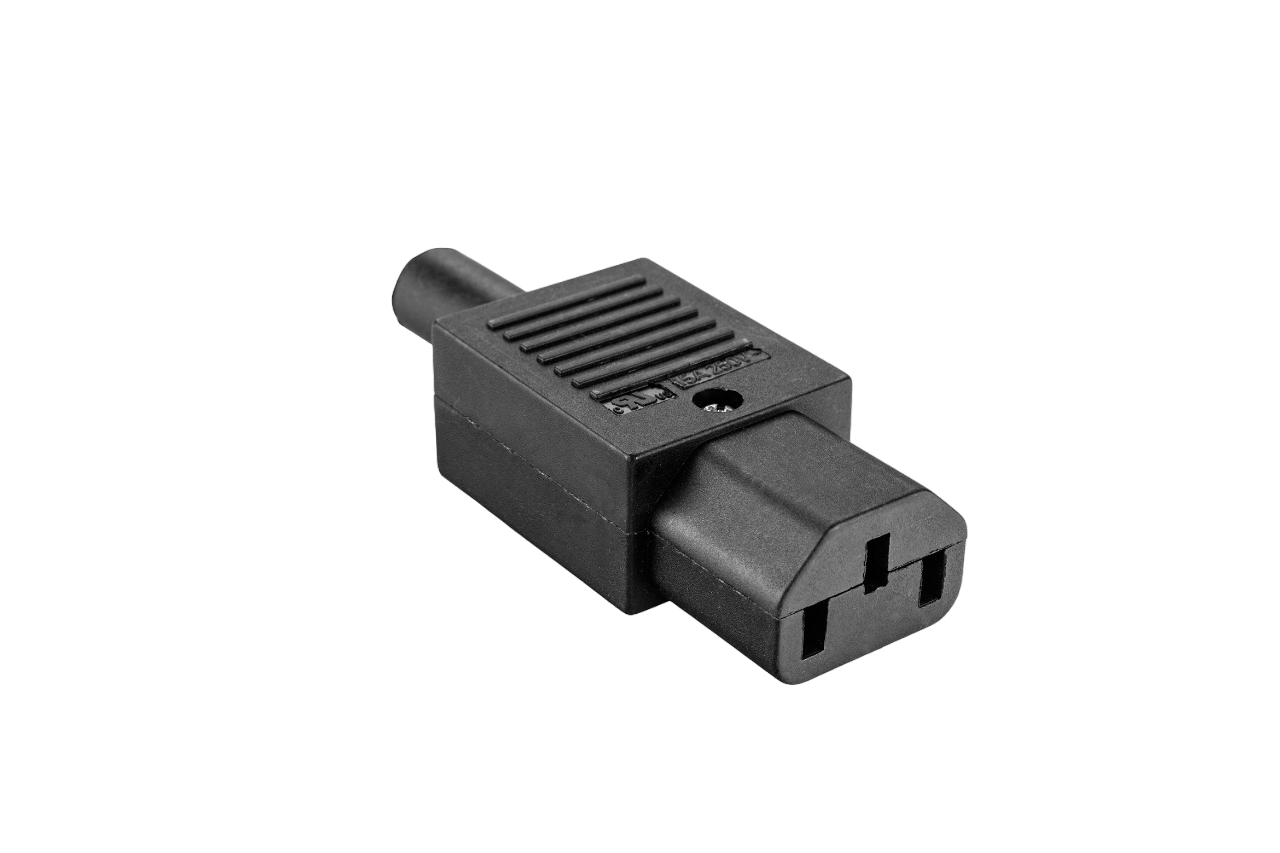

EMO-40 Rewirable Oulet
The EMO-40 is a rewirable IEC 60320 C13 connector (female) designed for dependable AC power connections in electrical and electronic equipment. Rated at 10A (VDE) / 15A (cULus), 250VAC, it features pillar-type screw terminals for easy field wiring, a glass-filled Nylon-6 housing, and an integrated cable clamp for secure strain relief. The EMO-40 is ideal for computers, servers, UPS systems, laboratory instruments, industrial equipment, medical devices, networking equipment, and test & measurement systems. It complies with major international safety standards and offers excellent durability and long service life.
(
No Reviews )
₹ 212.40
Tags emo-40
emo-40 rewirable inlet
rewirable inlet
inlet
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMO-40 |
| Product Type | Rewirable IEC Connector |
| Connector Type | IEC 60320 C13 (Female) |
| Rated Current | 10A (VDE) / 15A (cULus) |
| Rated Voltage | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Cable Mount (Inline) |
| Termination Type | Pillar-Type Screw Terminals |
| Cable Size | 0.75 mm² to 1.0 mm² |
| Screw Torque | 4 kg·cm |
| Contact Material | Brass, Nickel Plated |
| Housing Material | Nylon-6, 20% Glass Filled (GF20%), UL94 V-2 |
| Cable Guide | PVC |
| Terminal Screws | Zinc-Plated Mild Steel |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | 0°C to +70°C (VDE), 0°C to +65°C (UL), up to +125°C on request |
| Reference Standards | IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3 |
| Approvals | VDE, cULus |
| Compliance | CE, RoHS |
| Applications | Computers, Servers, UPS Systems, Laboratory Instruments, Medical Equipment, Industrial Machinery, Networking Equipment, Test & Measurement Equipment |
