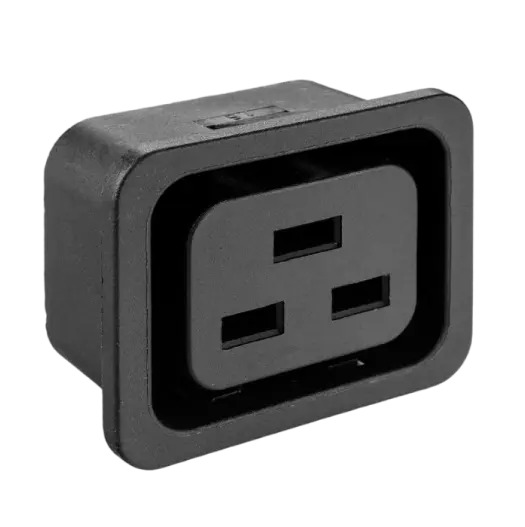

EMO-18 Mains Outlet
The EMO-18 is a heavy-duty IEC 60320 C19 panel-mount AC mains outlet (female receptacle) designed for high-current power distribution in industrial and commercial equipment. Rated at 16A (VDE) / 20A (UL), 250VAC, it features a snap-in panel mounting, solder, Fast-on, or PCB terminals, and a rugged glass-filled Nylon-6 housing for superior durability and long service life. It is ideal for Power Distribution Units (PDUs), server racks, UPS systems, industrial machinery, medical equipment, telecom systems, laboratory instruments, and high-power electronic equipment.
(
No Reviews )
₹ 118.00
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMO-18 |
| Product Type | IEC AC Mains Outlet |
| Connector Type | IEC 60320 C19 Female Outlet |
| Current Rating | 16A (VDE) / 20A (UL, cULus) |
| Voltage Rating | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount |
| Mounting Method | Snap-in Type |
| Panel Thickness | Standard 1.5 mm (Other thicknesses available on request) |
| Terminal Type | Solder Type / Fast-on / PCB Type |
| Withdrawal Force | 4.5 – 6.1 kg |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | 0°C to +70°C (VDE), 0°C to +65°C (UL); up to +125°C available on request |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Nylon-6, Glass Filled (GF20%), UL94 V-2 |
| Terminal Material | Brass, Tin Plated |
| Contact Material | Brass, Nickel Plated |
| Reference Standards | IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3 |
| Approvals | VDE, cULus |
| Compliance | CE, RoHS |
| Applications | Power Distribution Units (PDUs), Server Racks, UPS Systems, Industrial Equipment, Medical Devices, Laboratory Instruments, Telecom Equipment, High-Power Power Supplies |
