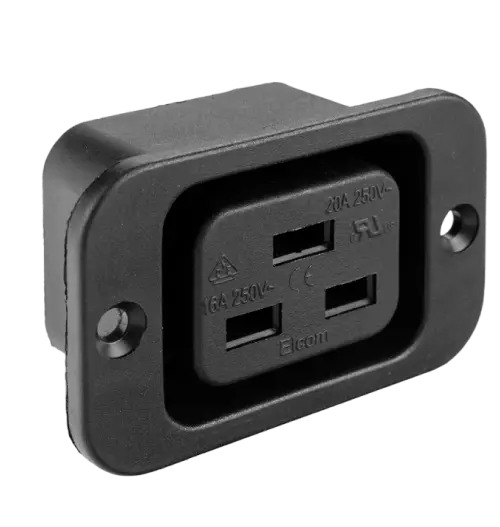

EMO-28 Mains Outlet
The EMO-28 is a heavy-duty IEC 60320 C19 panel-mount AC mains outlet (female receptacle) designed for high-current AC power distribution in industrial and commercial equipment. Rated at 16A (VDE) / 20A (UL), 250VAC, it features a screw-mount panel design, solder or Fast-on terminals, and a rugged glass-filled Nylon-6 housing for superior mechanical strength and long service life. It is ideal for Power Distribution Units (PDUs), server racks, UPS systems, industrial machinery, medical equipment, telecom systems, laboratory instruments, and high-power electronic equipment.
(
No Reviews )
₹ 177.00
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMO-28 |
| Product Type | IEC AC Mains Outlet |
| Connector Type | IEC 60320 C19 Female Outlet |
| Current Rating | 16A (VDE) / 20A (UL, cULus) |
| Voltage Rating | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount |
| Mounting Method | Screw Type |
| Terminal Type | Solder Type / Fast-on (6.3 × 0.8 mm) |
| Panel Cut-out | 32.5 × 24.5 mm |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Withdrawal Force | 4.5 – 6.1 kg |
| Operating Temperature | 0°C to +70°C (VDE), 0°C to +65°C (UL); up to +125°C available on request |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Nylon-6, Glass Filled (GF20%), UL94 V-2 |
| Terminal Material | Brass, Tin Plated |
| Reference Standards | IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3 |
| Approvals | VDE, cULus |
| Compliance | CE, RoHS |
| Applications | Power Distribution Units (PDUs), Server Racks, UPS Systems, Industrial Equipment, Medical Devices, Laboratory Instruments, Telecom Equipment, High-Power Power Supplies |
