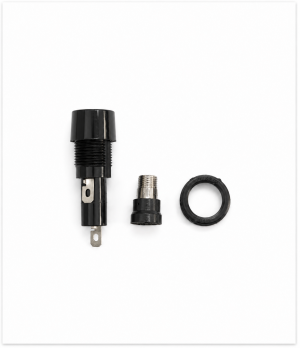

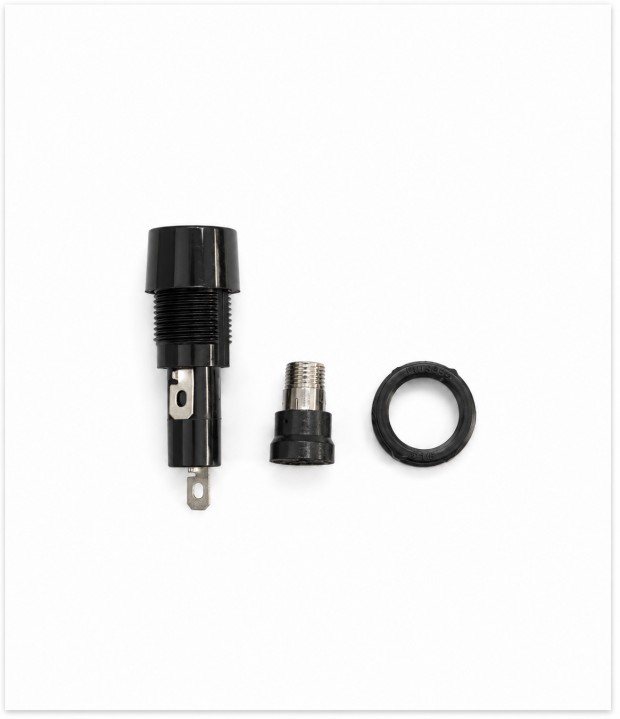

F-130 Fuse Holder
The F-130 is a panel-mount fuse holder designed for 5 × 20 mm glass or ceramic cartridge fuses, providing reliable overcurrent protection for electrical and electronic equipment. Rated at 10A, 250VAC, it features a threaded panel-mount body with a screw cap, solder terminals, and a durable thermoplastic housing for secure installation and easy fuse replacement. It is widely used in power supplies, industrial control panels, laboratory instruments, medical equipment, audio systems, test & measurement equipment, and consumer electronics.
(
No Reviews )
₹ 47.20
Add FAQ
| Parameter | Specification |
|---|---|
| Model | F-130 |
| Product Type | Panel Mount Fuse Holder |
| Fuse Size | 5 × 20 mm Glass/Ceramic Cartridge Fuse |
| Rated Current | 10 A |
| Rated Voltage | 250 VAC |
| Mounting Style | Panel Mount |
| Mounting Type | Threaded Body with Fixing Nut |
| Cap Type | Screw Cap |
| Termination Type | Solder Lug / Solder Terminal |
| Contact Material | Tin-Plated Copper Alloy |
| Body Material | Flame-Retardant Thermoplastic (UL94 V-0) |
| Contact Resistance | ≤ 5 mΩ |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | -20°C to +85°C |
| Applications | Power Supplies, Industrial Equipment, Audio Equipment, Laboratory Instruments, Medical Devices, Consumer Electronics, Test & Measurement Equipment |
