HFH-1 Fuse Link

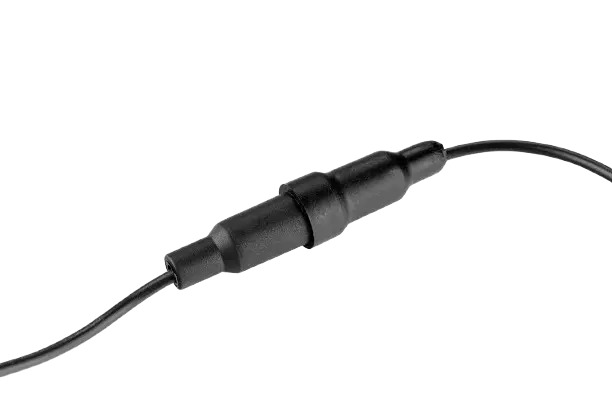

The HFH-1 is an inline (hanging) fuse holder designed to accommodate 5 × 20 mm glass or ceramic cartridge fuses for protecting low-power electrical and electronic circuits. Rated at 4A, 250VAC, it features solder-type terminals, a durable polyamide/polycarbonate insulated body, and a compact in-line design for easy installation in wiring harnesses and power cables. It is widely used in power supplies, battery chargers, home appliances, industrial equipment, automotive electronics, laboratory instruments, and consumer electronic products.
(
No Reviews )
₹ 41.30
Add FAQ
| Parameter | Specification |
|---|---|
| Model | HFH-1 |
| Product Type | Inline Fuse Holder |
| Fuse Size | 5 × 20 mm Glass/Ceramic Fuse |
| Rated Current | 4 A |
| Rated Voltage | 250 VAC |
| Mounting Style | Inline (Hanging) |
| Termination Type | Solder Type |
| Contact Material | Copper Alloy, Tin Plated |
| Body Material | Polyamide GF / Polycarbonate |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | -20°C to +85°C |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Applications | Power Supplies, Battery Chargers, Consumer Electronics, Industrial Equipment, Home Appliances, Laboratory Instruments, Automotive Electronics |
