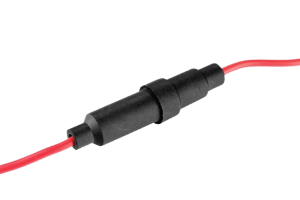

HFH-5 Fuse Link
The HFH-5 is a replaceable fuse link designed for use with compatible HFH series fuse holders, providing reliable overcurrent protection for electrical and electronic circuits. It is suitable for 5 × 20 mm glass or ceramic cartridge fuses and is manufactured using high-quality brass contacts with a durable thermoplastic insulating body. The compact design ensures secure fuse retention and easy replacement, making it ideal for power supplies, industrial equipment, laboratory instruments, medical devices, consumer electronics, and control panels.
(
No Reviews )
₹ 41.30
Add FAQ
| Parameter | Specification |
|---|---|
| Model | HFH-5 |
| Product Type | Fuse Link / Fuse Carrier |
| Compatible Fuse Size | 5 × 20 mm Glass or Ceramic Cartridge Fuse |
| Compatible Fuse Holder | HFH Series |
| Rated Current | Up to 10 A (Depends on installed fuse) |
| Rated Voltage | 250 VAC |
| Mounting Style | Replacement Fuse Carrier |
| Contact Material | Brass, Nickel/Tin Plated |
| Body Material | Flame-Retardant Thermoplastic (UL94 V-0) |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Contact Resistance | ≤ 10 mΩ |
| Operating Temperature | -20°C to +85°C |
| Applications | Power Supplies, Industrial Equipment, Medical Devices, Laboratory Instruments, Test & Measurement Equipment, Consumer Electronics, Control Panels |
