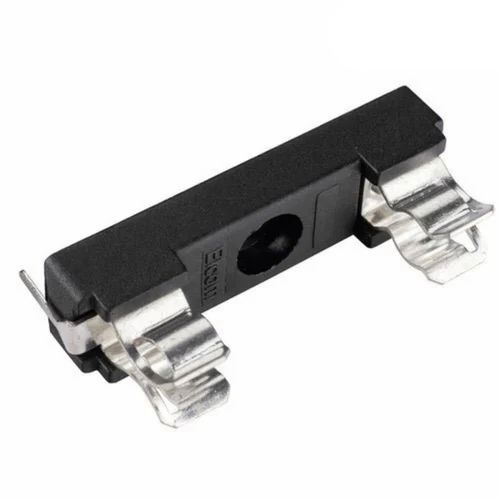

PBF-5 Fuse Holder
The PBF-5 is a PCB-mount fuse holder designed for 6.3 × 32 mm (1/4" × 1-1/4") cartridge fuses. Rated at 10A, 250VAC, it provides reliable overcurrent protection for printed circuit board applications. Featuring solder-type PCB terminals, a durable glass-filled polyamide (nylon) body, and tin-plated brass contacts, the PBF-5 ensures secure fuse retention and dependable electrical performance. It is ideal for power supplies, industrial control equipment, medical devices, laboratory instruments, UPS systems, battery chargers, and consumer electronics.
(
No Reviews )
₹ 53.10
Add FAQ
| Parameter | Specification |
|---|---|
| Model | PBF-5 |
| Product Type | PCB Mount Fuse Holder |
| Fuse Size | 6.3 × 32 mm Cartridge Fuse |
| Rated Current | 10 A |
| Rated Voltage | 250 VAC |
| Mounting Style | PCB Mount |
| Termination Type | Solder Pins |
| Contact Material | Brass, Tin/Silver Plated |
| Body Material | Glass-Filled Polyamide (Nylon) |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | -20°C to +85°C |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Reference Standard | IEC 60127-6 |
| Compliance | CE, RoHS |
| Applications | Power Supplies, UPS Systems, Battery Chargers, Industrial Control Equipment, Medical Devices, Laboratory Instruments, Consumer Electronics, Test & Measurement Equipment |
