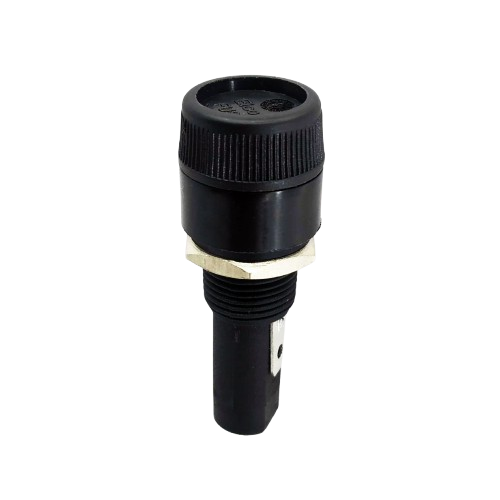

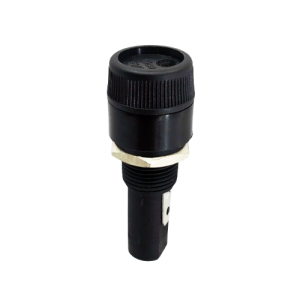

PFH-511 Fuse Holder
The PFH-511 is a panel-mount screw-type fuse holder designed for 6.3 × 32 mm cartridge fuses, providing reliable overcurrent protection for electrical and electronic equipment. Rated at 10A, 250VAC, it features a threaded panel-mount body, screw cap, and 4.8 mm solder/Fast-on terminals for secure installation and easy fuse replacement. Manufactured with a high-strength nylon body and tin-plated copper alloy contacts, it is ideal for power supplies, industrial control panels, UPS systems, medical equipment, laboratory instruments, telecom equipment, and automation systems.
(
No Reviews )
₹ 53.10
Add FAQ
| Parameter | Specification |
|---|---|
| Model | PFH-511 |
| Product Type | Panel Mount Fuse Holder |
| Fuse Size | 6.3 × 32 mm Cartridge Fuse |
| Rated Current | 10 A |
| Rated Voltage | 250 VAC |
| Reference Standard | IEC 60127-6 |
| Mounting Style | Panel Mount |
| Mounting Type | Screw Type |
| Panel Thickness | Up to 3.0 mm |
| Termination Type | 4.8 mm Fast-on / Solder Terminal |
| Contact Material | Copper Alloy, Tin Plated |
| Body Material | Nylon |
| Body Color | Black |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | -55°C to +85°C |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Compliance | CE, RoHS (on request) |
| Applications | Power Supplies, Industrial Equipment, UPS Systems, Medical Devices, Laboratory Instruments, Telecom Equipment, Control Panels, Automation Systems |
