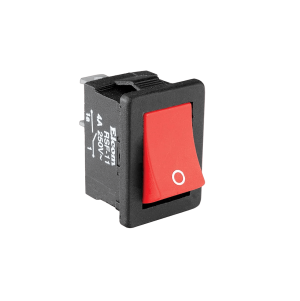

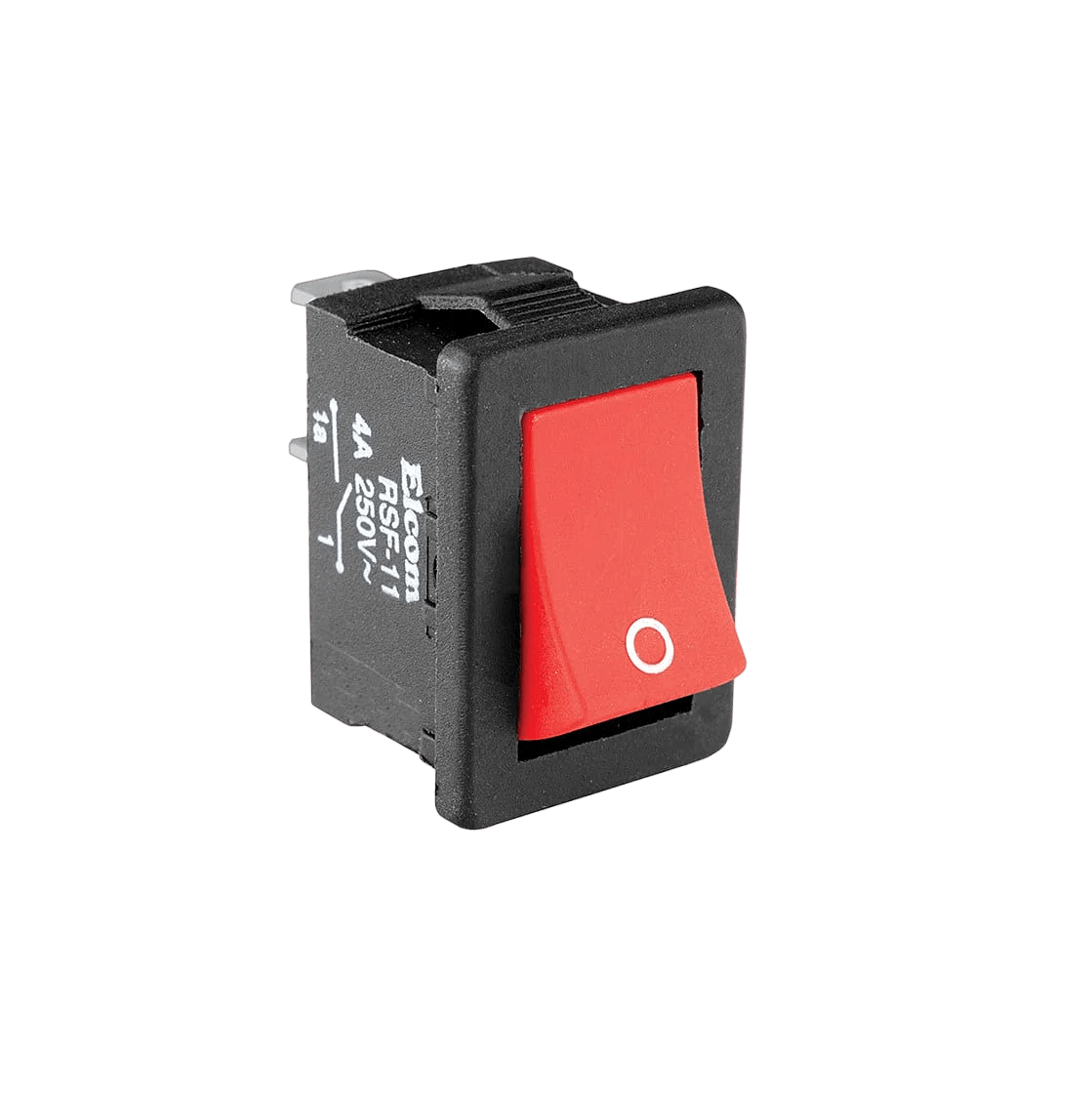

RSF-11 Rocker Switch SPST
The RS-11 Rocker Switch is a compact and reliable non-illuminated SPST panel-mount rocker switch designed for dependable ON/OFF switching in electrical and electronic equipment. Available in 4A, 6A, and 16A variants at 250VAC, it features a snap-in mounting design, silver-plated contacts, and a durable nylon housing for long service life. Its compact size and robust construction make it ideal for home appliances, power supplies, industrial control panels, automation equipment, and electrical systems.
(
No Reviews )
₹ 41.30
Add FAQ
| Parameter | Specification |
|---|---|
| Model | RS-11 |
| Product Type | Non-Illuminated Rocker Switch |
| Switch Function | ON/OFF |
| Contact Arrangement | SPST (Single Pole Single Throw) |
| Current Rating | 4 A / 6 A / 16 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Panel Mount |
| Mounting Method | Snap-in |
| Panel Thickness | Refer to panel cut-out specification |
| Terminal Type | Solder Type / Fast-on 4.8 × 0.8 mm |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | 1.5 kVAC for 1 minute |
| Electrical Life | 10,000 Switching Cycles (Minimum) |
| Operating Temperature | -25°C to +85°C |
| Soldering Temperature | 270°C for 5 seconds (Max.) |
| Housing Material | Nylon |
| Rocker Material | Nylon |
| Terminal Material | Copper Alloy, Silver Plated |
| Contact Material | Silver & Copper, Silver Plated |
| Available Colours | Black, Red, Green, Yellow, White |
| Reference Standard | IEC 61058-1, UL 1054 |
| Compliance | CE, RoHS (On Request) |
| Applications | Home Appliances, Consumer Electronics, Power Supplies, Industrial Control Panels, Automation Equipment, Electrical Panels |
