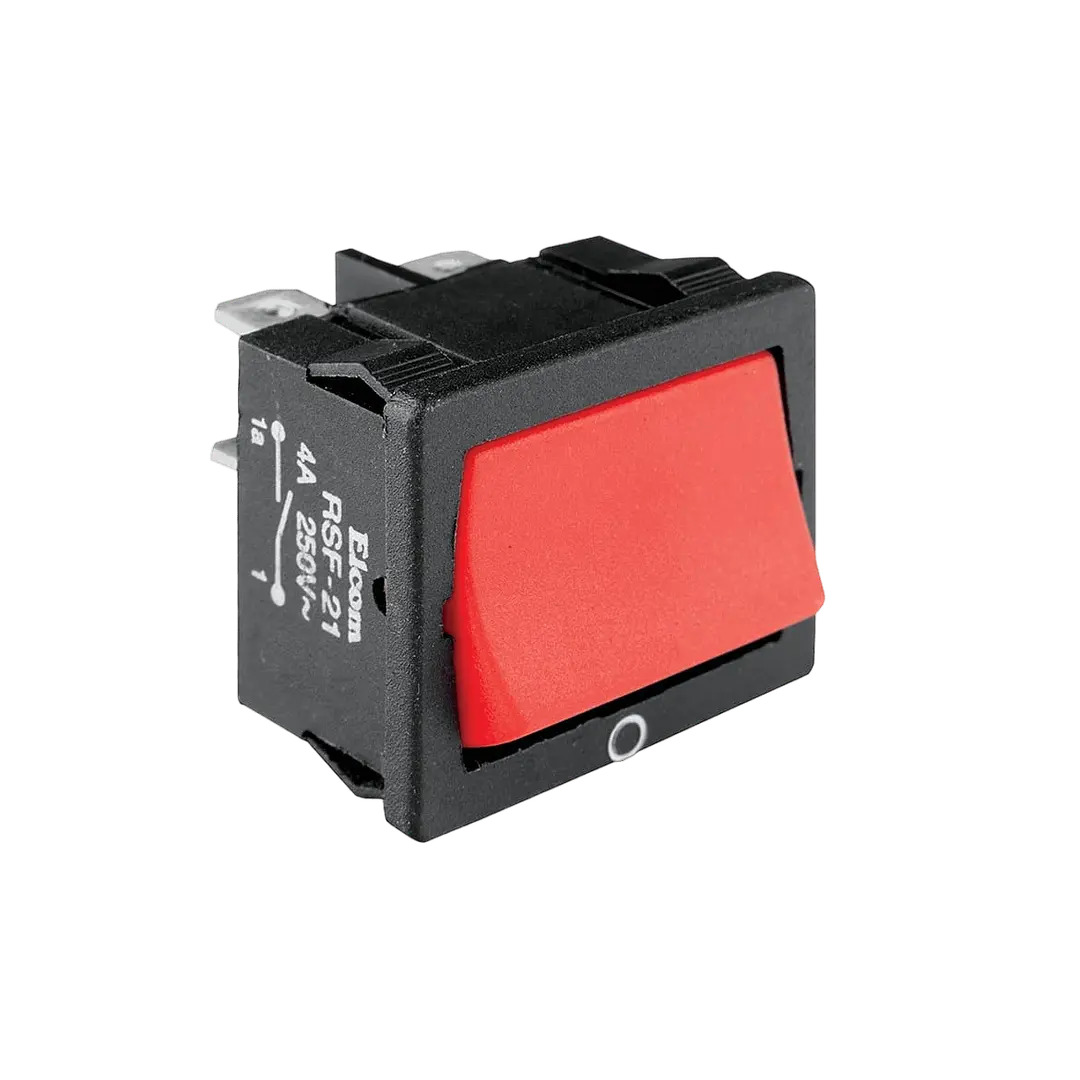

RSF-21 Rocker Switch DPST
The RSF-21 Rocker Switch is a compact and reliable non-illuminated DPST panel-mount rocker switch designed for dependable ON/OFF switching in electrical and electronic equipment. Available in 4A and 6A variants at 250VAC, it features a snap-in mounting design, silver-plated contacts, and a durable nylon housing for long service life. Its robust construction makes it ideal for home appliances, industrial control panels, power supplies, automation equipment, and electrical systems.
(
No Reviews )
₹ 23.60
Add FAQ
| Parameter | Specification |
|---|---|
| Model | RSF-21 |
| Product Type | Non-Illuminated Rocker Switch |
| Switch Function | ON/OFF |
| Contact Arrangement | DPST (Double Pole Single Throw) |
| Current Rating | 4 A / 6 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Panel Mount |
| Mounting Method | Snap-in |
| Panel Thickness | Up to 3.0 mm |
| Terminal Type | Solder Type / Fast-on 4.8 × 0.8 mm |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | 1.0 kVAC for 1 minute |
| Electrical Life | 10,000 Switching Cycles (Minimum) |
| Operating Temperature | -25°C to +85°C |
| Soldering Temperature | 270°C for 5 seconds (Max.) |
| Housing Material | Nylon |
| Rocker Material | Nylon |
| Terminal Material | Brass / Copper, Silver Plated |
| Contact Material | Silver & Copper, Silver Plated |
| Available Colours | Black, Red |
| Reference Standard | IEC 61058-1, UL 1054 |
| Compliance | CE, RoHS (On Request) |
| Applications | Home Appliances, Industrial Control Panels, Power Supplies, Automation Equipment, Electronic Equipment, Electrical Panels |
