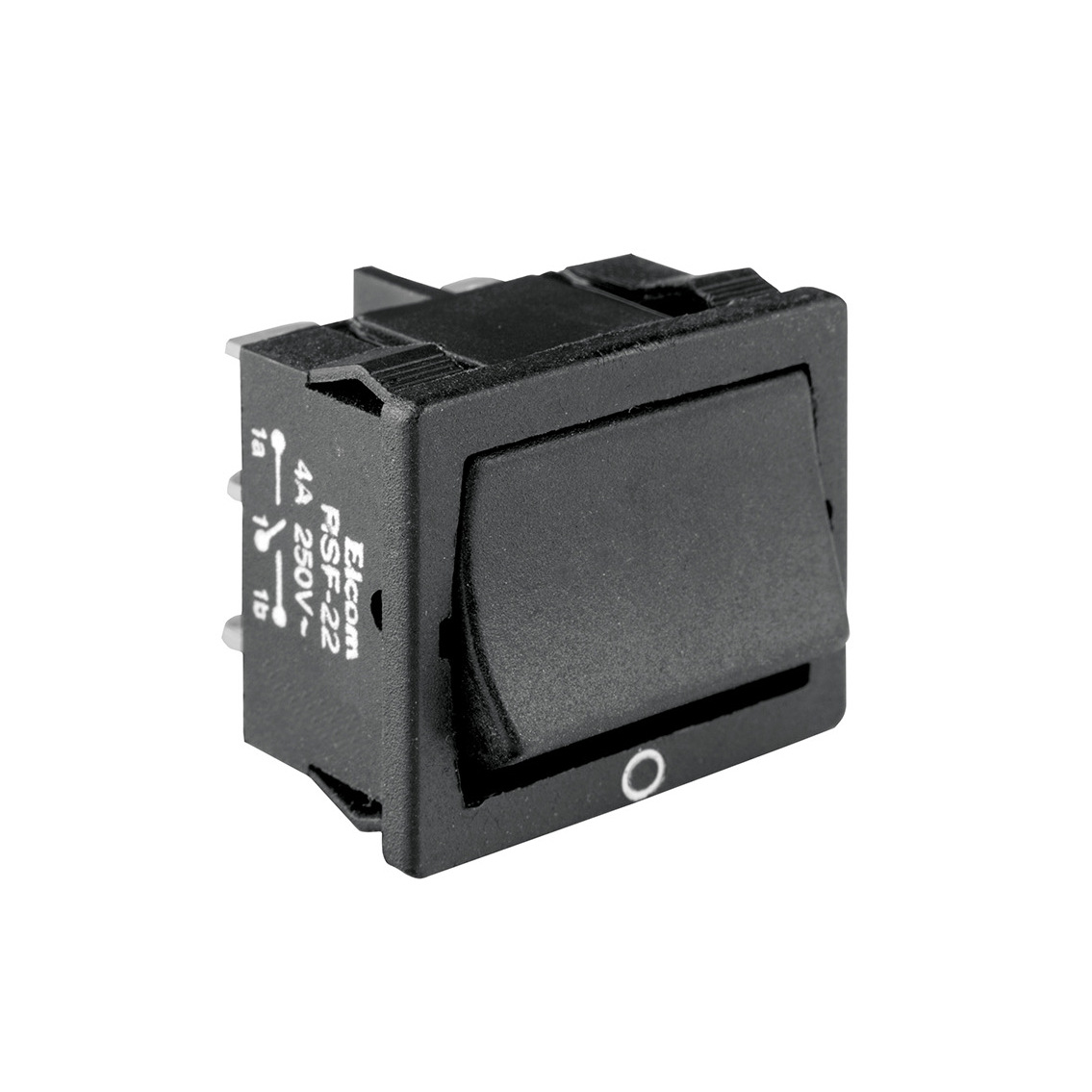

RSF-22 Rocker Switch DPDT

The RSF-22 Rocker Switch is a compact and reliable non-illuminated DPDT panel-mount rocker switch designed for dependable ON-OFF-ON switching in electrical and electronic equipment. Available in 4A and 6A variants at 250VAC, it features a snap-in mounting design, silver-plated contacts, and a durable nylon housing for long service life. It is ideal for industrial control panels, home appliances, automation equipment, power supplies, and electronic control systems.

( No Reviews )

₹ 29.50

Order From Whatsapp

Tags rsf-22 rocker switch rocker switch

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	RSF-22
Product Type	Non-Illuminated Rocker Switch
Switch Function	ON-OFF-ON
Contact Arrangement	DPDT (Double Pole Double Throw)
Current Rating	4 A / 6 A
Voltage Rating	250 VAC
Mounting Style	Panel Mount
Mounting Method	Snap-in
Panel Thickness	Up to 3.0 mm
Terminal Type	Solder Type / Fast-on 4.8 × 0.8 mm
Contact Resistance	≤ 10 mΩ (Initial)
Insulation Resistance	≥ 100 MΩ at 500 VDC
Dielectric Strength	1.0 kVAC for 1 minute
Electrical Life	10,000 Switching Cycles (Minimum)
Operating Temperature	-25°C to +85°C
Soldering Temperature	270°C for 5 seconds (Max.)
Housing Material	Nylon
Rocker Material	Nylon
Terminal Material	Brass / Copper, Silver Plated
Contact Material	Silver & Copper, Silver Plated
Available Colours	Black, Red
Reference Standard	IEC 61058-1, UL 1054
Compliance	CE, RoHS (On Request)
Applications	Industrial Control Panels, Power Supplies, Automation Equipment, Electronic Devices, Home Appliances, Electrical Panels
