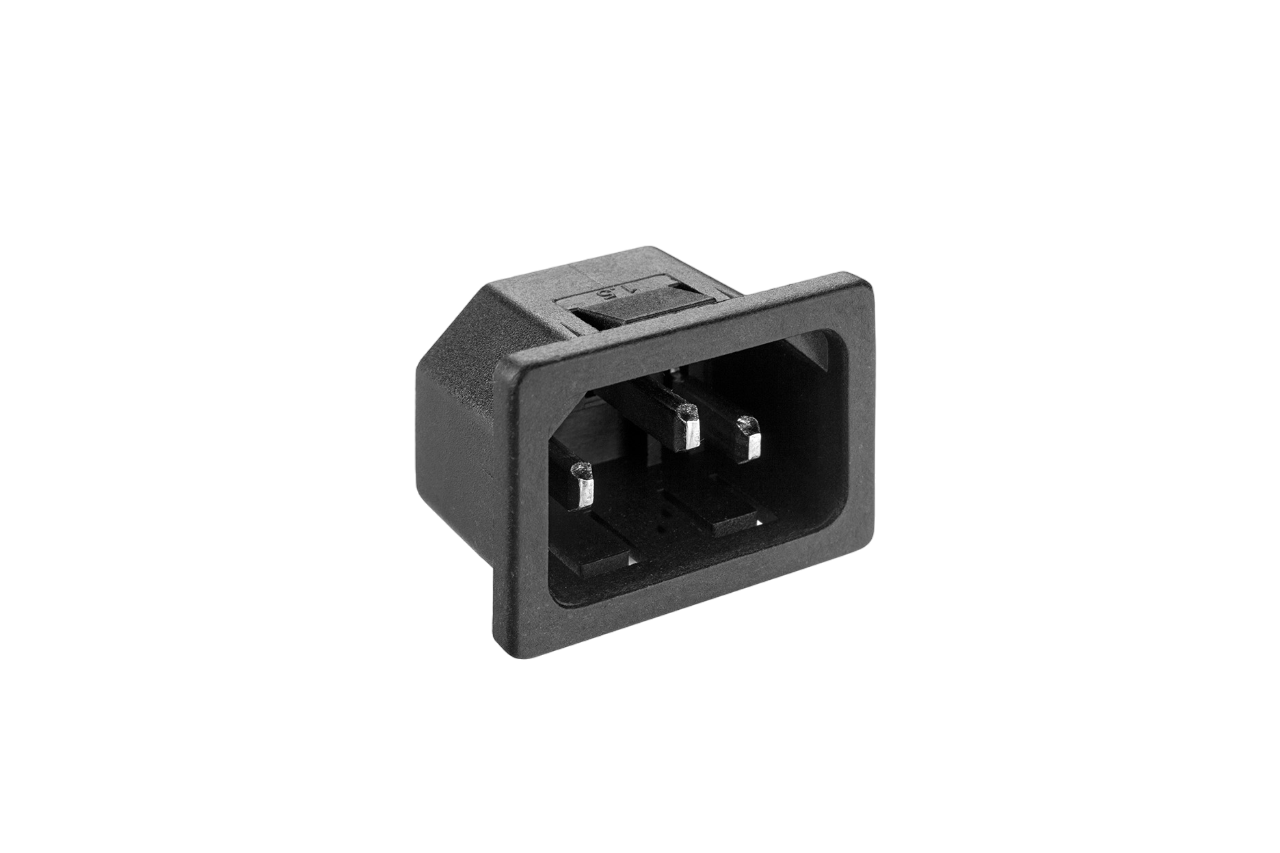

EMI-10 Mains Inlet

The EMI-10 Mains Inlet is a compact IEC 320 C14 panel-mount AC power inlet with an integrated EMI/RFI filter, designed to suppress electromagnetic interference and ensure clean, stable power input. Rated at 10A, 250VAC, it combines power entry and noise filtering in a single unit, making it ideal for medical equipment, industrial control panels, laboratory instruments, telecom systems, UPS units, power supplies, and electronic equipment.

( No Reviews )

₹ 59.00 ^{₹ 206.50}

Order From Whatsapp

Tags emi-10 inlet mains inlet emi-10 mains inlet

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	EMI-10
Product Type	IEC Mains Inlet EMI Filter
Current Rating	10 A
Voltage Rating	250 VAC, 50/60 Hz
Connector Type	IEC 60320 C14 Inlet
Filter Type	Single Stage EMI/RFI Filter
Mounting Style	Panel Mount
Mounting Method	Snap-in / Screw Mount (Model Dependent)
Terminal Type	6.3 mm Quick Connect / Solder
Insulation Resistance	≥ 100 MΩ at 500 VDC
Dielectric Strength	2000 VAC for 1 Minute (Line to Ground)
Leakage Current	≤ 0.5 mA @ 250 VAC, 50 Hz
Operating Frequency	50/60 Hz
Operating Temperature	-25°C to +85°C
Housing Material	Flame Retardant Thermoplastic (UL94 V-0)
Terminal Material	Tin-Plated Brass
Earth Connection	Integrated Earth Terminal
Fuse Holder	Integrated (5 × 20 mm Fuse)
Compliance	IEC 60320, CE, RoHS
Applications	SMPS, UPS Systems, Medical Equipment, Industrial Control Panels, Laboratory Instruments, Test Equipment, Communication Devices
