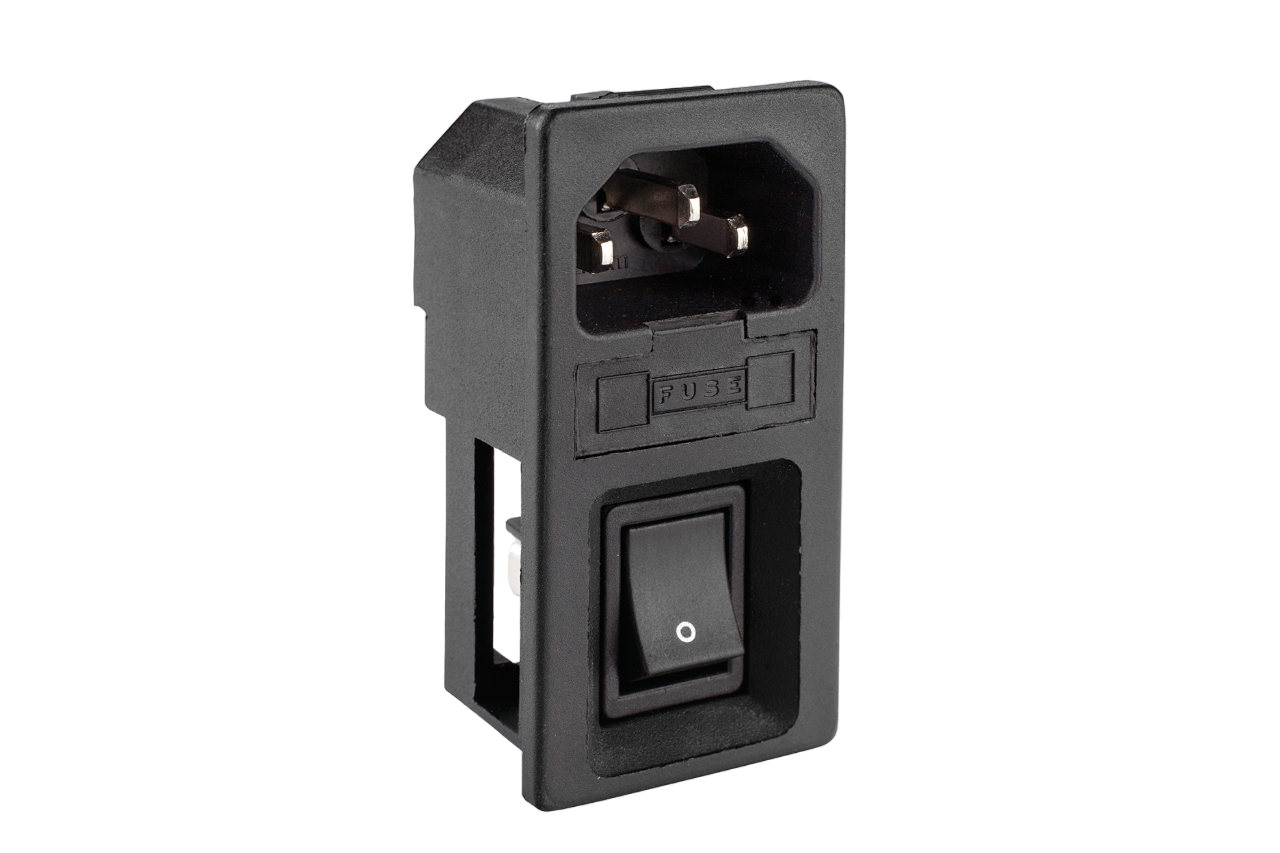

EMI-13 Mains Inlet
The EMI-13 Mains Inlet is a compact IEC 60320 C14 panel-mount AC power inlet with an integrated fuse holder and non-illuminated DPST rocker switch, designed to provide safe and reliable AC power entry for electrical and electronic equipment. Rated at 10A, 250VAC, it features snap-in panel mounting, solder or Fast-on terminals, and a flame-retardant nylon housing. It is ideal for industrial control panels, laboratory instruments, medical equipment, UPS systems, power supplies, telecom equipment, and automation systems.
(
No Reviews )
₹ 324.50
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMI-13 |
| Product Type | IEC AC Mains Inlet with Fuse Holder & Power Switch |
| Connector Type | IEC 60320 C14 Appliance Inlet |
| Current Rating | 10 A |
| Voltage Rating | 250 VAC |
| Switch Type | DPST Rocker Switch (Non-Illuminated) |
| Switch Rating | 4A (Standard), 6A & 10A (Optional) |
| Fuse Holder | 5 × 20 mm Fuse |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount, Snap-in Type |
| Panel Thickness | 0.8 – 2.5 mm |
| Terminal Type | Solder Type or Fast-on |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 1000 MΩ at 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | -25°C to +70°C |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Nylon-6, GF20%, V-2 |
| Terminal Material | Brass, Tin Plated |
| Contact Material | Brass/Copper (Connector), Silver-Plated (Switch) |
| Reference Standards | IEC 60320-1, IEC 61058-1, IEC 60127-6, CSA C22.2 No.60320-1-11 |
| Approvals | cCSAus |
| Compliance | CE, RoHS |
| Applications | Power Supplies, UPS Systems, Medical Equipment, Laboratory Instruments, Industrial Control Panels, Telecom Equipment, Automation Systems |
