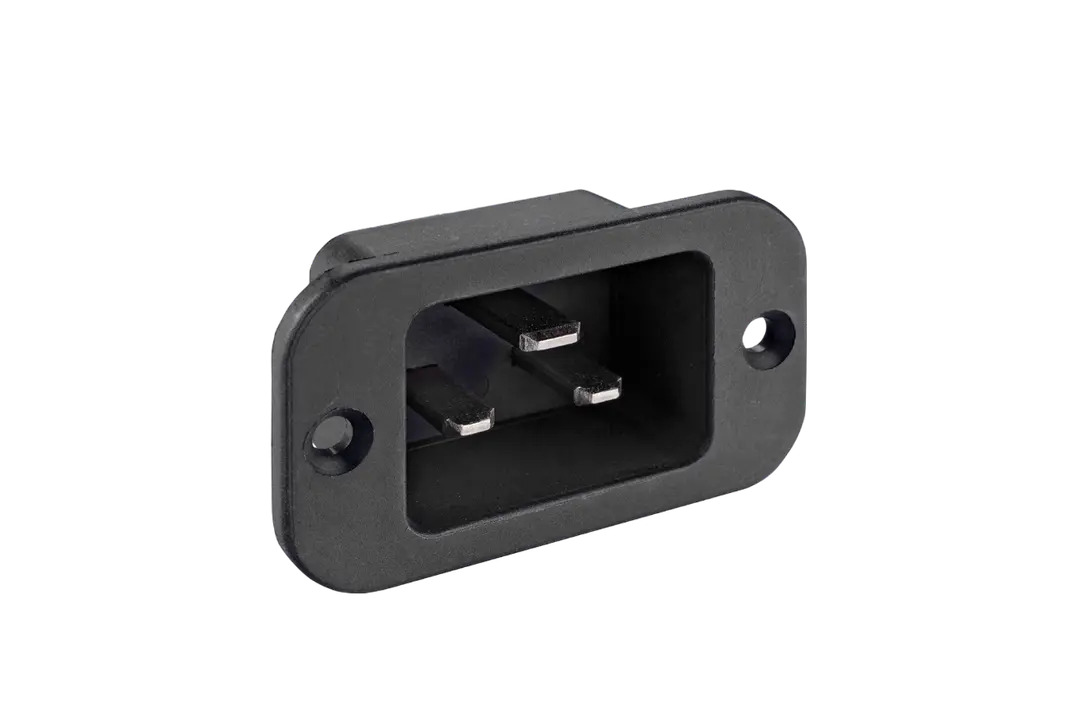

EMI-28 Mains Inlet
The EMI-28 is a heavy-duty IEC 60320 C20 panel-mount AC mains inlet designed for high-current power applications. Rated at 16A (VDE) / 20A (UL), 250VAC, it features a screw-mount panel design, solder or Fast-On terminals, and a rugged glass-filled Nylon-6 housing for excellent mechanical strength and long service life. It is ideal for industrial machinery, UPS systems, power distribution units (PDUs), medical equipment, laboratory instruments, telecom equipment, and high-power electronic systems.
(
No Reviews )
₹ 177.00
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMI-28 |
| Product Type | IEC AC Mains Inlet |
| Connector Type | IEC 60320 C20 Appliance Inlet |
| Current Rating | 16A (VDE) / 20A (UL) |
| Voltage Rating | 250 VAC |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount |
| Mounting Method | Screw Type |
| Panel Cut-out | 32.5 × 24.5 mm |
| Terminal Type | Solder Type / Fast-On (4.8 mm or 6.3 mm) |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | 0°C to +70°C (VDE), 0°C to +65°C (UL); up to +125°C (UL version on request) |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Nylon-6, Glass Filled (GF20%), UL94 V-2 |
| Terminal Material | Brass, Tin Plated |
| Contact Material | Brass, Nickel Plated |
| Reference Standards | IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3 |
| Approvals | VDE, cULus |
| Compliance | CE, RoHS |
| Applications | Industrial Equipment, PDUs, UPS Systems, Medical Equipment, Laboratory Instruments, Telecom Equipment, High-Power Power Supplies, Automation Systems |
