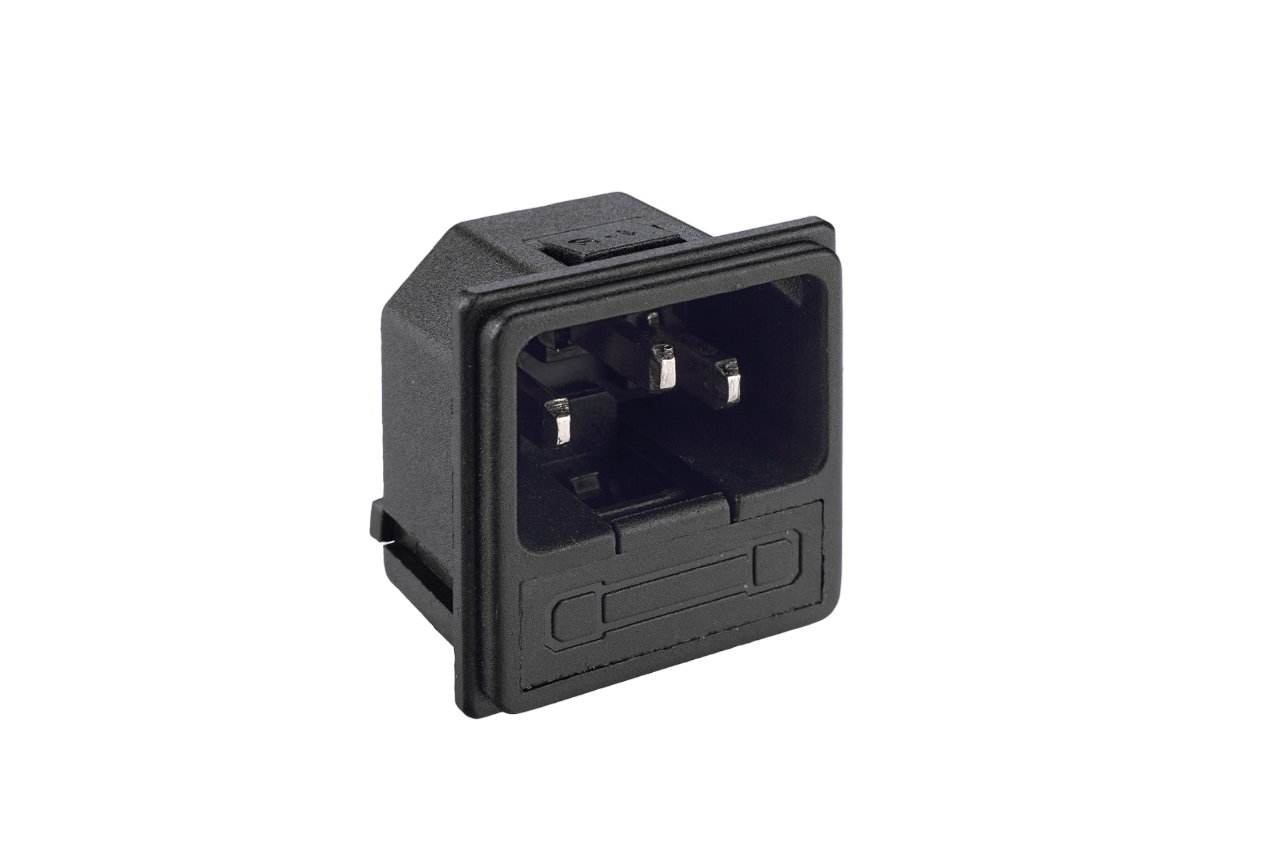

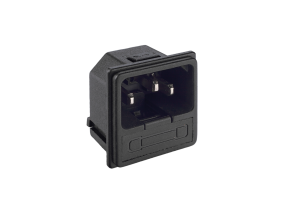

EMI-11 Mains Inlet
The EMI-11 Mains Inlet is a compact IEC 60320 C14 panel-mount AC power inlet with an integrated single-stage EMI/RFI filter, designed to reduce conducted electromagnetic interference and provide clean AC power to electronic equipment. Rated at 6A, 250VAC, it features quick-connect terminals, a metal-shielded housing, and a flame-retardant thermoplastic body, making it suitable for industrial equipment, medical devices, laboratory instruments, power supplies, UPS systems, telecom equipment, and automation panels.
(
No Reviews )
₹ 236.00
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMI-11 |
| Product Type | IEC AC Mains Inlet with EMI/RFI Filter |
| Connector Type | IEC 60320 C14 Power Inlet |
| Filter Type | Single-Stage EMI/RFI Filter |
| Current Rating | 6 A |
| Voltage Rating | 250 VAC |
| Operating Frequency | 50/60 Hz |
| Leakage Current | ≤ 0.8 mA @ 250 VAC |
| Dielectric Strength | 2000 VAC (Line to Ground) |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Mounting Style | Panel Mount |
| Terminal Type | 6.3 mm Quick Connect (Faston) |
| Housing Material | Flame Retardant Thermoplastic |
| Case Material | Metal Shielded Housing |
| Operating Temperature | -25°C to +85°C |
| Safety Standards | IEC 60320, IEC 60939 |
| Compliance | CE, UL, cUL, RoHS |
| Applications | Industrial Equipment, Medical Devices, Laboratory Instruments, UPS Systems, SMPS, Telecom Equipment, Automation Panels |
No FAQs Found
