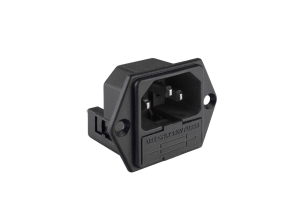

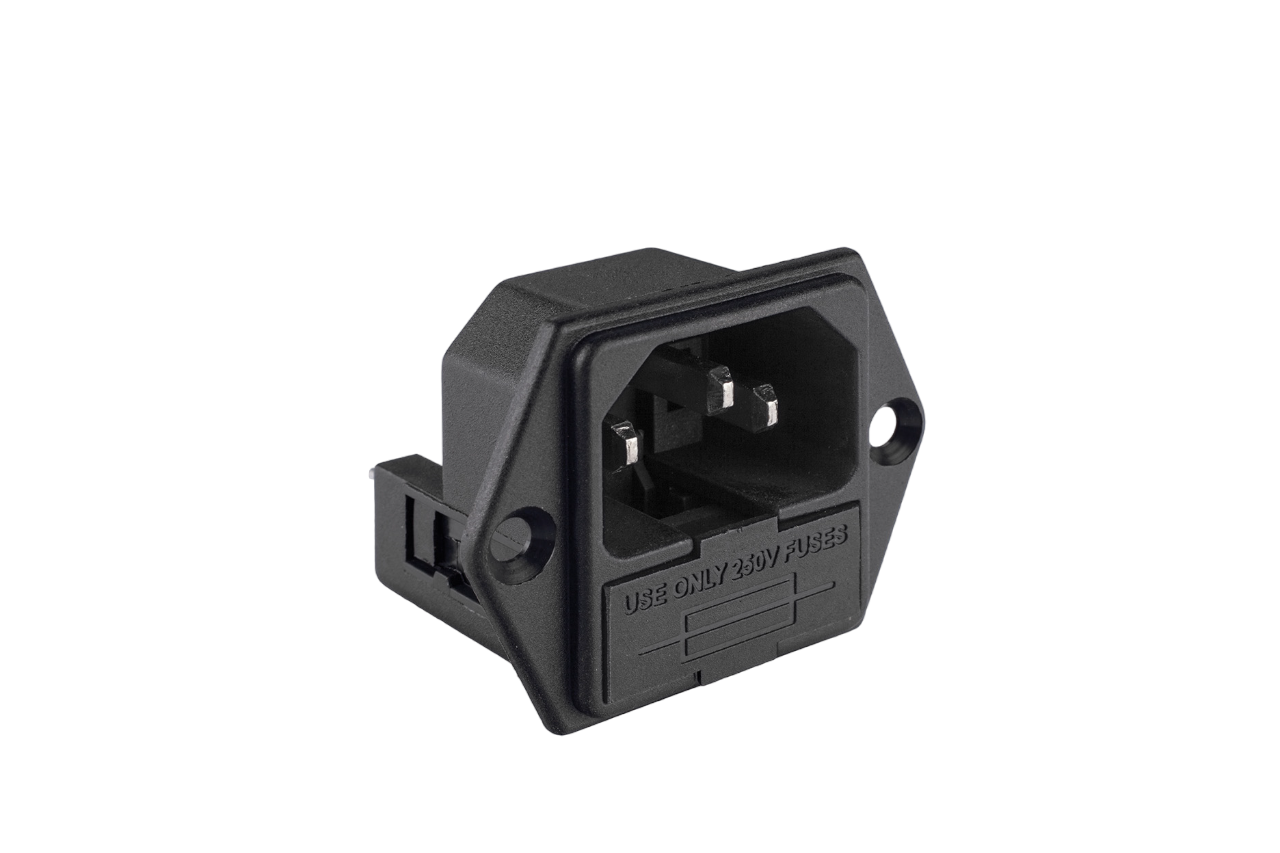

EMI-21-DF Mains Inlet
The EMI-21-DF is a high-quality IEC 60320 C14 panel-mount AC mains inlet with an integrated dual fuse holder, designed to provide safe AC power entry and enhanced overcurrent protection for electrical and electronic equipment. Rated at 10A, 250VAC, it features a screw-mount design, solder or Fast-on terminals, and a flame-retardant Nylon-6 housing for reliable long-term performance. It is ideal for SMPS, UPS systems, industrial control panels, medical equipment, laboratory instruments, telecom equipment, and automation systems.
(
No Reviews )
₹ 383.50
Tags mains inlet
inlet
emi-21-df
emi-21-df mains inlet
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMI-21-DF |
| Product Type | IEC AC Mains Inlet with Dual Fuse Holder |
| Connector Type | IEC 60320 C14 Appliance Inlet |
| Current Rating | 10 A |
| Voltage Rating | 250 VAC |
| Fuse Holder | Dual Fuse Holder (2 × 5 × 20 mm Fuses) |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount |
| Mounting Method | Screw Type |
| Terminal Type | Solder Type / Fast-On (2.8 mm, 4.8 mm or 6.3 mm options) |
| Contact Resistance | ≤ 20 mΩ (Initial) |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | -25°C to +70°C |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Nylon-6, Glass Filled (GF20%), UL94 V-2 |
| Terminal Material | Brass, Tin/Nickel Plated |
| Contact Material | Copper Alloy, Tin/Nickel Plated |
| Reference Standards | IEC 60320-1, IEC 60127-6, CSA C22.2 No.60320-1-11 |
| Approvals | cCSAus |
| Compliance | CE, RoHS |
| Applications | SMPS, UPS Systems, Medical Equipment, Industrial Control Panels, Laboratory Instruments, Telecom Equipment, Automation Systems, Test & Measuring Equipment |
