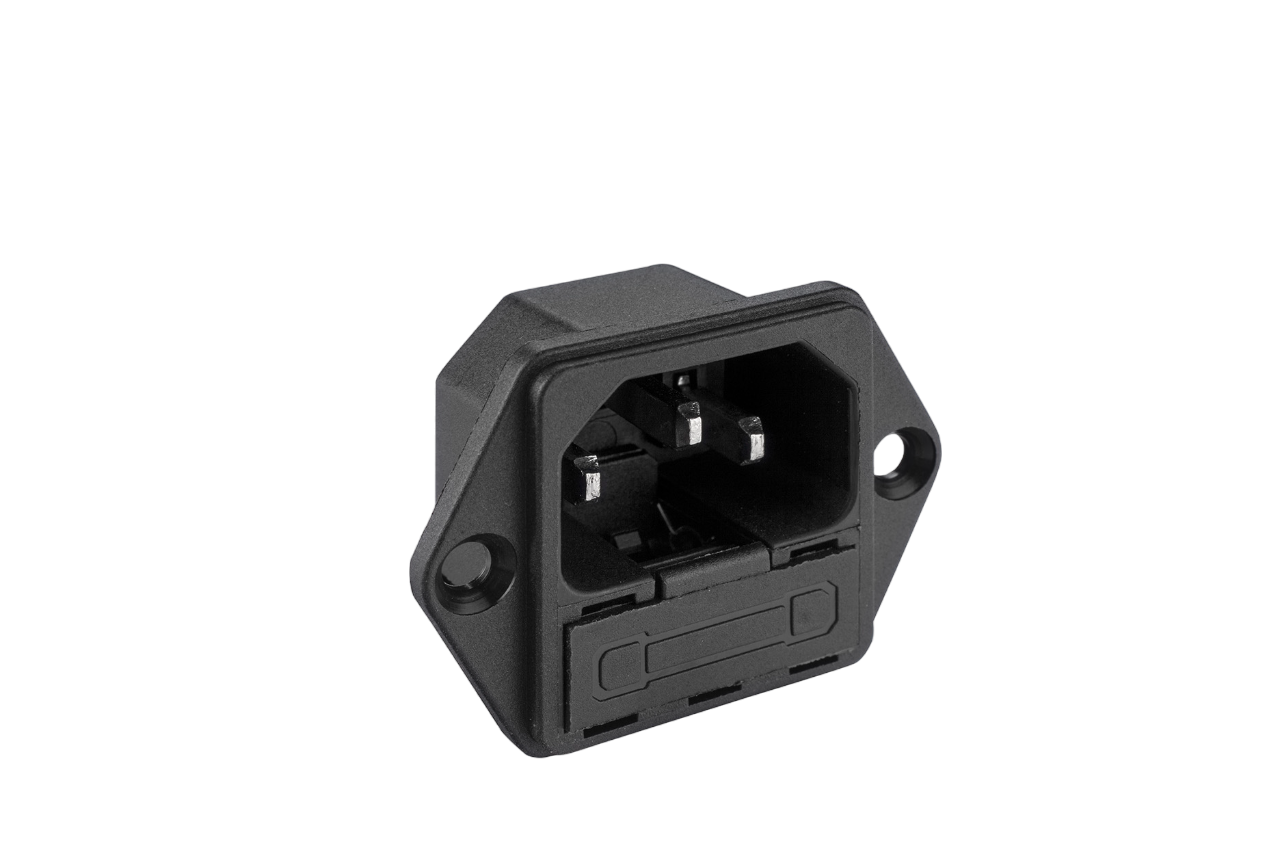

EMI-21 Mains Inlet
The EMI-21 is a high-quality IEC 60320 C14 panel-mount AC mains inlet with an integrated single fuse holder, designed to provide safe and reliable AC power entry with overcurrent protection. Rated at 10A, 250VAC, it features a screw-mount design, solder or Fast-on terminals, and a flame-retardant Nylon-6 housing for excellent durability. It is widely used in SMPS, UPS systems, industrial control panels, medical equipment, laboratory instruments, telecom equipment, and electronic appliances.
(
No Reviews )
₹ 354.00
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMI-21 |
| Product Type | IEC AC Mains Inlet with Fuse Holder |
| Connector Type | IEC 60320 C14 Appliance Inlet |
| Current Rating | 10 A |
| Voltage Rating | 250 VAC |
| Fuse Holder | Single Fuse Slot (5 × 20 mm) |
| Frequency | 50/60 Hz |
| Mounting Style | Panel Mount |
| Mounting Method | Screw Type |
| Terminal Type | Solder Type / Fast-on 4.8 mm |
| Contact Resistance | ≤ 20 mΩ (Initial) |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | -25°C to +70°C |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Nylon-6, Glass Filled (GF20%), V-2 |
| Terminal Material | Brass, Tin/Nickel Plated |
| Contact Material | Brass/Copper, Tin/Nickel Plated |
| Reference Standards | IEC 60320-1, IEC 60127-6, CSA C22.2 No.60320-1-11 |
| Approvals | cCSAus |
| Compliance | CE, RoHS |
| Applications | SMPS, UPS Systems, Industrial Control Panels, Medical Equipment, Laboratory Instruments, Telecom Equipment, Electronic Devices |
