EMI-14 Mains Inlet

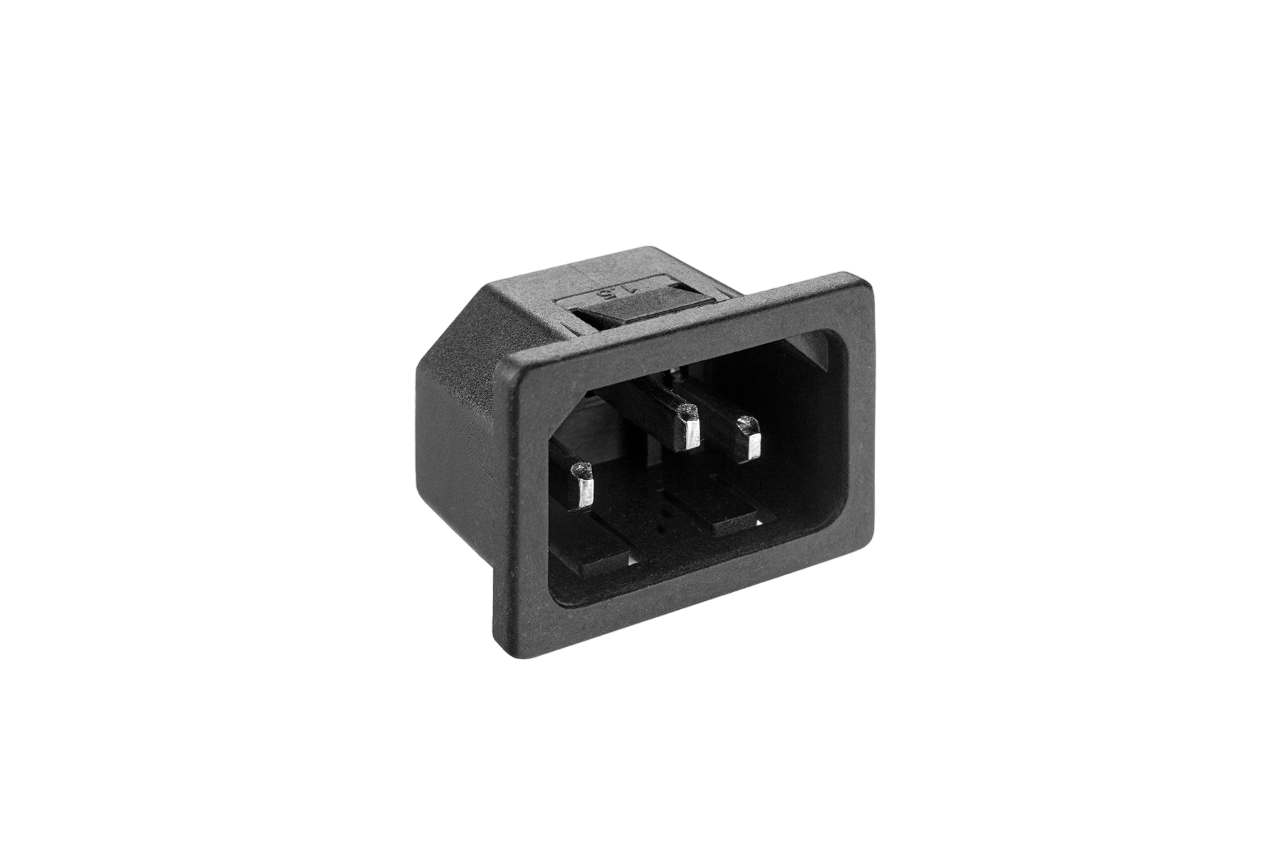

The EMI-10 Mains Inlet is a compact IEC 320 C14 panel-mount AC power inlet with an integrated EMI/RFI filter, designed to suppress electromagnetic interference and ensure clean, stable power input. Rated at 10A, 250VAC, it combines power entry and noise filtering in a single unit, making it ideal for medical equipment, industrial control panels, laboratory instruments, telecom systems, UPS units, power supplies, and electronic equipment.
(
No Reviews )
₹ 324.50
Tags emi-14
inlet
mains
mans inlet
emi-14 mains inlet
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | EMI-10 |
| Product Type | IEC AC Mains Inlet with EMI/RFI Filter |
| Connector Type | IEC 60320 C14 Power Inlet |
| Current Rating | 10 A |
| Voltage Rating | 250 VAC |
| Frequency | 50/60 Hz |
| Filter Type | Single-Stage EMI/RFI Filter |
| Leakage Current | ≤ 0.75 mA @ 250 VAC, 50 Hz |
| Dielectric Strength | 2000 VAC (Line to Ground) |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Mounting Style | Panel Mount |
| Panel Cut-out | Standard IEC C14 Cut-out |
| Terminal Type | 6.3 mm Quick Connect (Faston) |
| Housing Material | Flame Retardant Thermoplastic |
| Case Material | Metal Shielded Housing |
| Operating Temperature | -25°C to +85°C |
| Safety Standards | IEC 60939, IEC 60320 |
| Compliance | CE, RoHS |
| Applications | SMPS, UPS Systems, Medical Equipment, Laboratory Instruments, Industrial Automation, Telecom Equipment, Test & Measuring Instruments |
