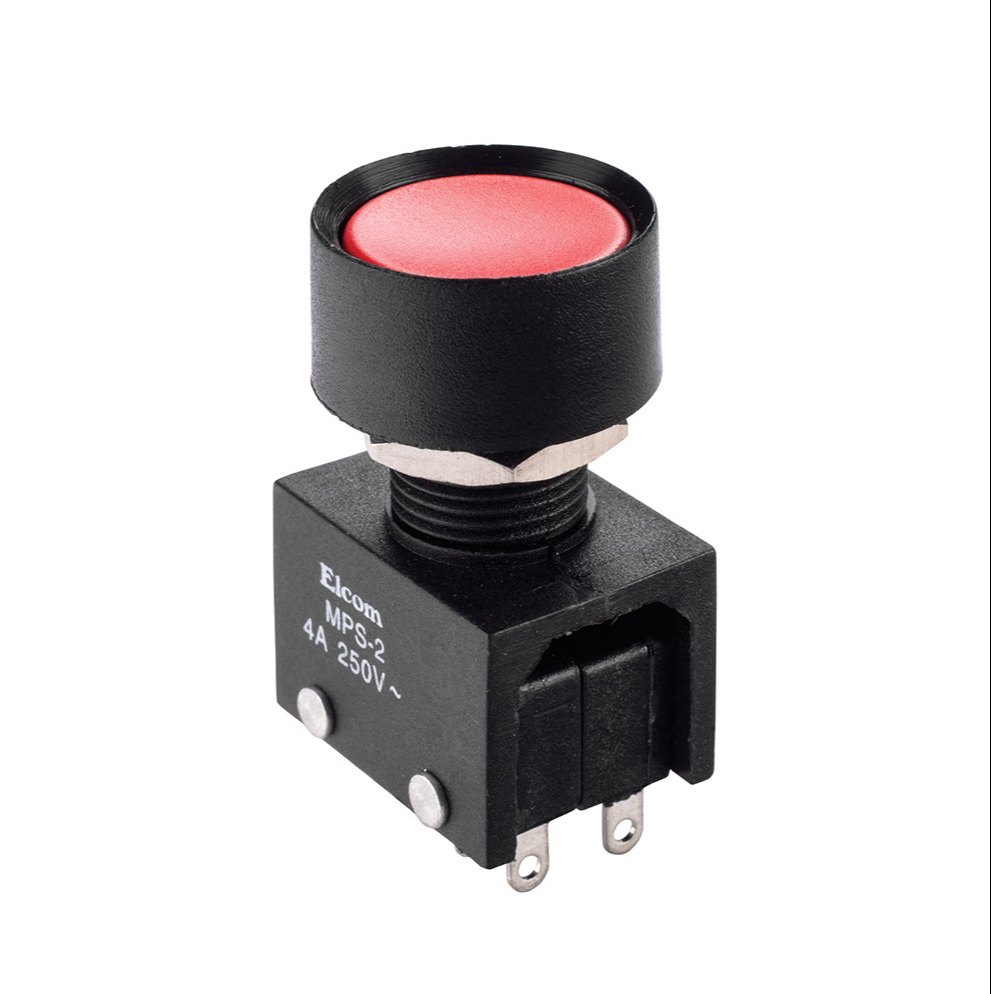

MPS-2 Micro Switch 4Amp
The MPS-2 Push Button Micro Switch is a high-performance panel-mount momentary micro switch designed for reliable switching in industrial and electronic control applications. Rated at 4A, 250VAC, it features a shrouded push-button actuator, 2NO + 2NC contact configuration, silver-plated contacts, and a durable PBT housing. Its long mechanical life and dependable performance make it ideal for control panels, instrumentation, automation systems, home appliances, and test equipment.
(
No Reviews )
₹ 112.10
Tags mps-2
switch
micro pushbutton switch
mps-2 switch
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | MPS-2 |
| Product Type | Panel Mount Push Button Micro Switch |
| Switch Function | Momentary |
| Contact Arrangement | 2NO + 2NC |
| Current Rating | 4 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Panel Mount |
| Mounting Method | Panel with Screw |
| Actuator Type | Shrouded Push Button |
| Terminal Type | Solder Type |
| Contact Resistance | ≤ 20 mΩ (Initial) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | 1 kVAC for 1 minute |
| Electrical Life | 10,000 Switching Cycles (Minimum) |
| Mechanical Life | 50,000 Switching Cycles (Minimum) |
| Operating Temperature | -20°C to +85°C |
| Soldering Temperature | 270°C for 5 seconds (Max.) |
| Housing Material | PBT, Glass Filled |
| Actuator Material | Delrin (Available in Red, Black & Green) |
| Terminal Material | Brass, Silver Plated |
| Contact Material | Copper, Silver Plated |
| Reference Standard | IEC 61058-1, UL 1054 |
| Compliance | CE, RoHS (On Request) |
| Applications | Industrial Control Panels, Instrumentation, Home Appliances, Automation Equipment, Test & Measuring Equipment, Electronic Devices |
