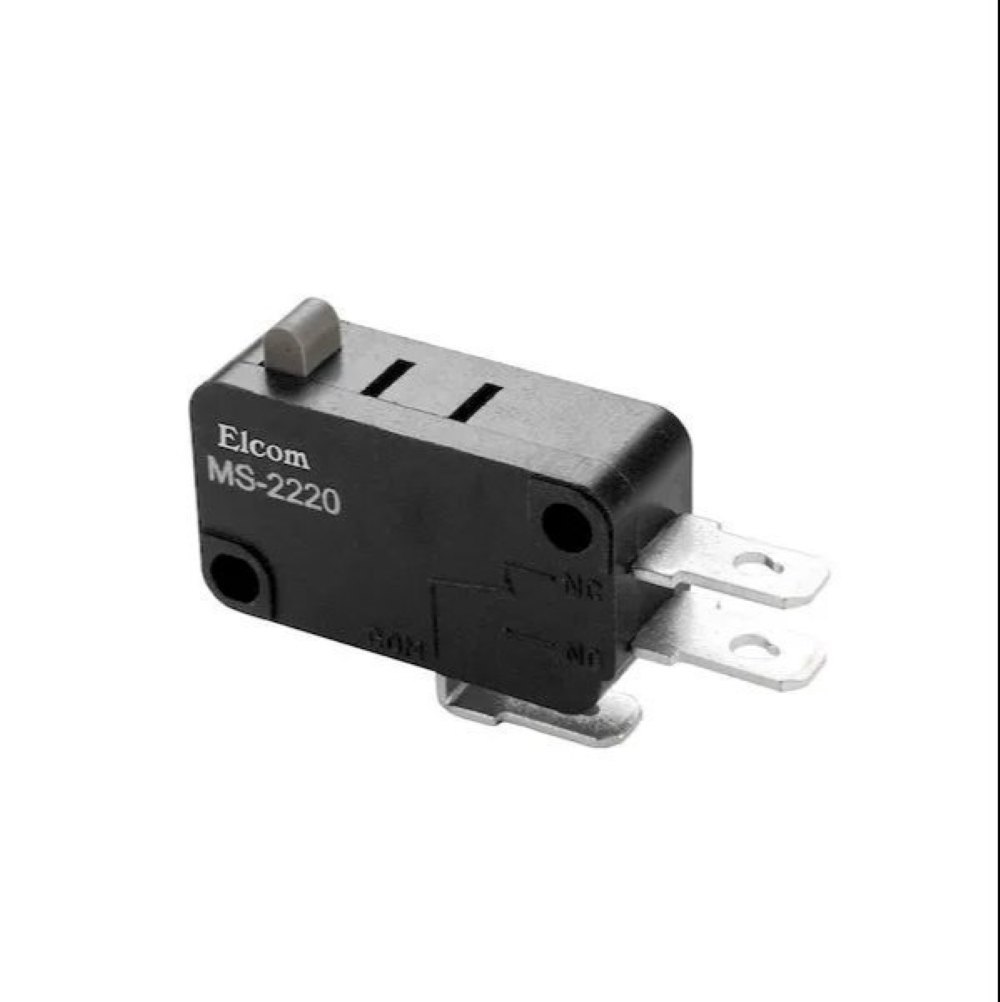

MS-2 Micro Switach 6Amp
The MS-2 Micro Switch is a compact and reliable screw-mount momentary micro switch with a short roller lever actuator, designed for precise position sensing and control applications. Rated at 6A, 250VAC, it features NO/NC contacts, silver-plated terminals, and a durable engineering thermoplastic body, ensuring excellent reliability and long service life. It is ideal for industrial machinery, automation equipment, home appliances, limit sensing, and control systems.
(
No Reviews )
₹ 64.90
Tags micro
switch
micro switch
ms-2
ms-2 micro switch
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | MS-2 |
| Product Type | Micro Switch |
| Switch Function | Momentary |
| Contact Arrangement | NO / NC (SPDT) |
| Actuator Type | Short Roller Lever |
| Current Rating | 6 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Screw Mount |
| Terminal Type | Solder Type / PCB Type |
| Operating Force | 0.40 kg Max. |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | 1 kVAC for 1 minute |
| Electrical Life | 100,000 Switching Cycles (Minimum) |
| Mechanical Life | 100,000 Switching Cycles (Minimum) |
| Operating Temperature | -20°C to +85°C |
| Soldering Temperature | 270°C for 5 seconds (Max.) |
| Body Material | Engineering Thermoplastic |
| Terminal Material | Brass, Tin/Silver Plated |
| Contact Material | Silver Alloy |
| Reference Standard | IEC 61058-1 |
| Applications | Industrial Automation, Limit Switches, Home Appliances, Control Panels, Machinery, Position Sensing |
