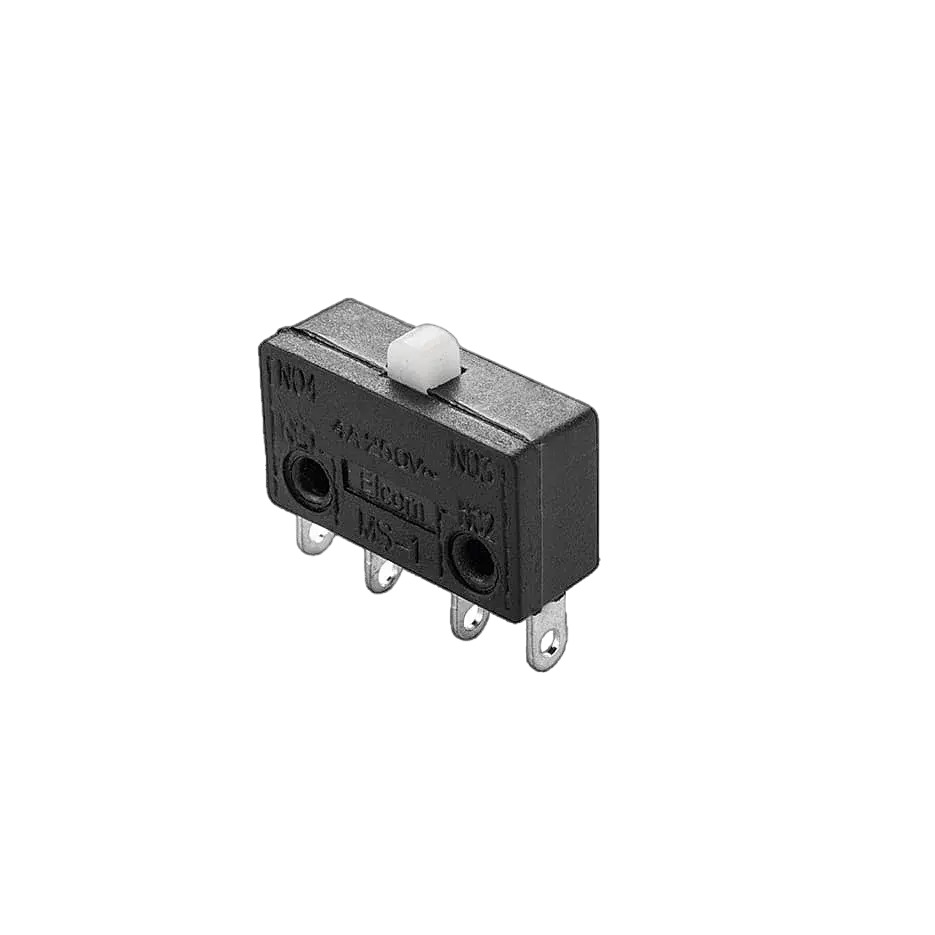

MS-1 Micro Switch 4Amp
The MS-1 Micro Switch is a compact and reliable chassis/PCB mount momentary SPDT micro switch designed for precision switching in electrical and electronic applications. Rated at 4A, 250VAC, it features a durable PBT glass-filled housing, silver-plated contacts, and solder terminals for dependable performance. Its compact size, fast response, and long electrical and mechanical life make it ideal for industrial control panels, home appliances, automation systems, instrumentation, and electronic equipment.
(
No Reviews )
₹ 53.10
Tags ms-1
micro
switch
micro switch
ms-1 mcro switch
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | MS-1 |
| Product Type | Micro Switch |
| Switch Function | Momentary |
| Contact Arrangement | SPDT (1NO + 1NC) |
| Current Rating | 4 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Chassis / PCB Mount |
| Mounting Method | Screw / PCB Mount |
| Terminal Type | Solder Type |
| Actuator Type | Standard Push Actuator |
| Contact Resistance | ≤ 20 mΩ (Initial) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | 1 kVAC for 1 minute |
| Electrical Life | 10,000 Switching Cycles (Minimum) |
| Mechanical Life | 50,000 Switching Cycles (Minimum) |
| Operating Temperature | -25°C to +85°C |
| Soldering Temperature | 270°C for 5 seconds (Max.) |
| Housing Material | PBT, Glass Filled |
| Actuator Material | Delrin (White) |
| Terminal Material | Brass, Tin Plated |
| Contact Material | Copper, Silver Plated |
| Reference Standard | IEC 61058-1, UL 1054 |
| Compliance | CE, RoHS (On Request) |
| Applications | Industrial Control Panels, Home Appliances, Instrumentation, Automation Equipment, Electronic Devices, PCB Assemblies |
