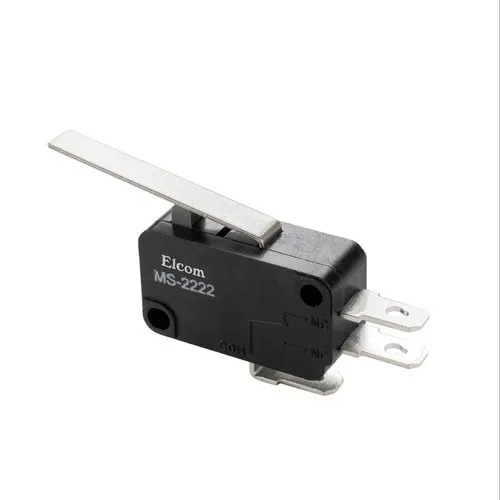

MS-2222 Micro Switch 6Amp
The MS-2222 Micro Switch is a compact and durable screw-mount momentary micro switch featuring a long lever actuator for accurate position sensing and control. Rated at 6A, 250VAC, it offers SPDT (NO/NC) contacts, low contact resistance, and a long mechanical life. Its rugged thermoplastic body and reliable switching performance make it ideal for industrial automation, machinery, home appliances, control panels, and limit sensing applications.
(
No Reviews )
₹ 53.10
Tags ms-2222
micro
switch
micro switch
ms-2222 micro switch
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | MS-2222 |
| Product Type | Micro Switch |
| Switch Function | Momentary |
| Contact Arrangement | SPDT (NO/NC) |
| Actuator Type | Long Lever |
| Current Rating | 6 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Screw Mount / PCB Mount |
| Terminal Type | Solder Type / Snap-on Type |
| Operating Force | 0.40 kg Max. |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | 1 kVAC for 1 minute |
| Electrical Life | 50,000 Switching Cycles (Minimum) |
| Mechanical Life | 100,000 Switching Cycles (Minimum) |
| Operating Temperature | -25°C to +85°C |
| Soldering Temperature | 270°C for 5 seconds (Max.) |
| Body Material | Engineering Thermoplastic |
| Terminal Material | Copper Alloy, Silver Plated |
| Contact Material | Silver Alloy |
| Reference Standard | IEC 61058-1, UL 1054 |
| Compliance | CE, RoHS (On Request) |
| Applications | Industrial Automation, Limit Switches, Home Appliances, Control Panels, Machinery, Position Sensing, Safety Interlocks |
