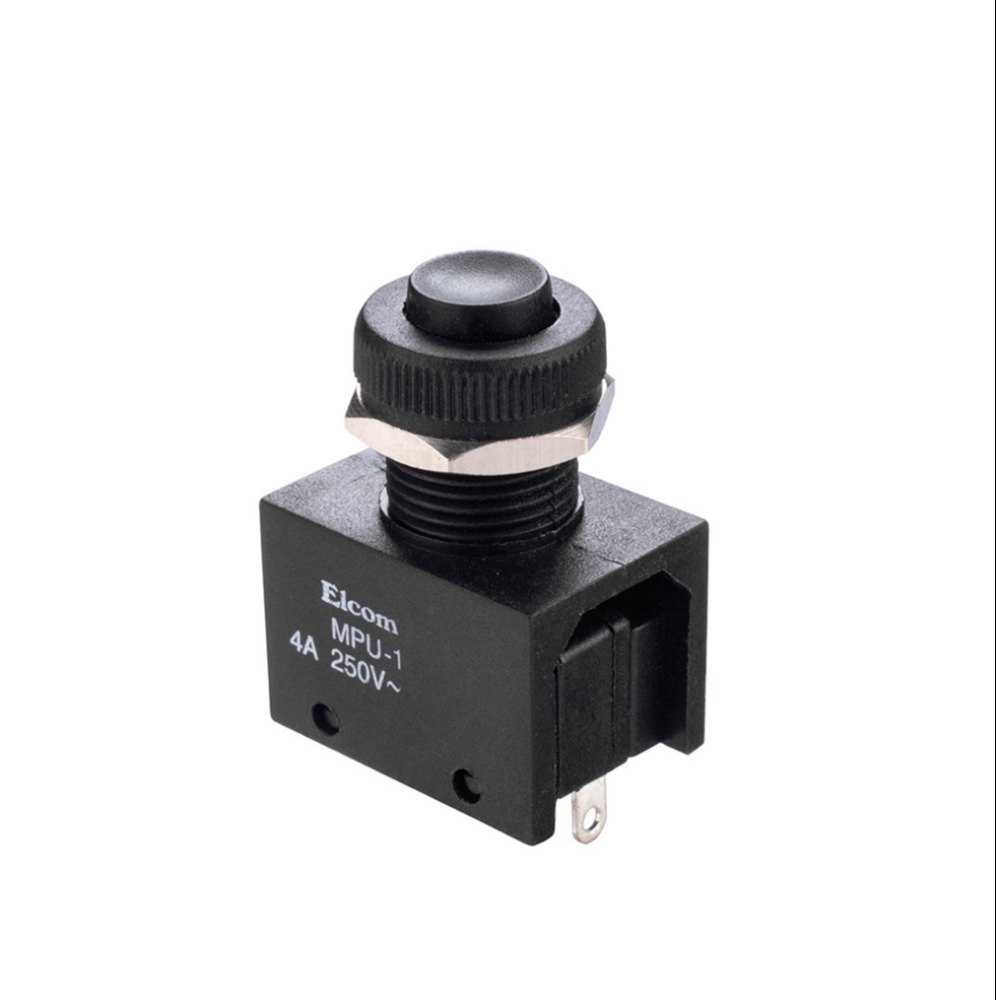

MPU-1 Micro Switch 4Amp

The MPU-1 Push Button Micro Switch is a compact and reliable panel-mount momentary SPDT micro switch featuring an unshrouded push-button actuator for fast and precise operation. Rated at 4A, 250VAC, it offers silver-plated contacts, solder terminals, and a durable PBT housing for long service life. It is ideal for industrial control panels, instrumentation, home appliances, automation equipment, test & measuring instruments, and electronic devices.

( No Reviews )

₹ 76.70

Order From Whatsapp

Tags mpu-1 switch switch mpu-1

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	MPU-1
Product Type	Panel Mount Push Button Micro Switch
Switch Function	Momentary
Contact Arrangement	SPDT (1NO + 1NC)
Current Rating	4 A
Voltage Rating	250 VAC
Mounting Style	Panel Mount
Mounting Method	Panel with Screw
Actuator Type	Unshrouded Push Button
Terminal Type	Solder Type
Contact Resistance	≤ 20 mΩ (Initial)
Insulation Resistance	≥ 100 MΩ at 500 VDC
Dielectric Strength	1 kVAC for 1 minute
Electrical Life	10,000 Switching Cycles (Minimum)
Mechanical Life	50,000 Switching Cycles (Minimum)
Operating Temperature	-20°C to +85°C
Soldering Temperature	270°C for 5 seconds (Max.)
Housing Material	PBT, Glass Filled
Actuator Material	Delrin (Available in Black, Red, Green, Blue & Yellow)
Terminal Material	Brass, Tin Plated
Contact Material	Copper, Silver Plated
Reference Standard	IEC 61058-1, UL 1054
Compliance	CE, RoHS (On Request)
Applications	Industrial Control Panels, Instrumentation, Home Appliances, Automation Equipment, Test & Measuring Instruments, Electronic Devices
