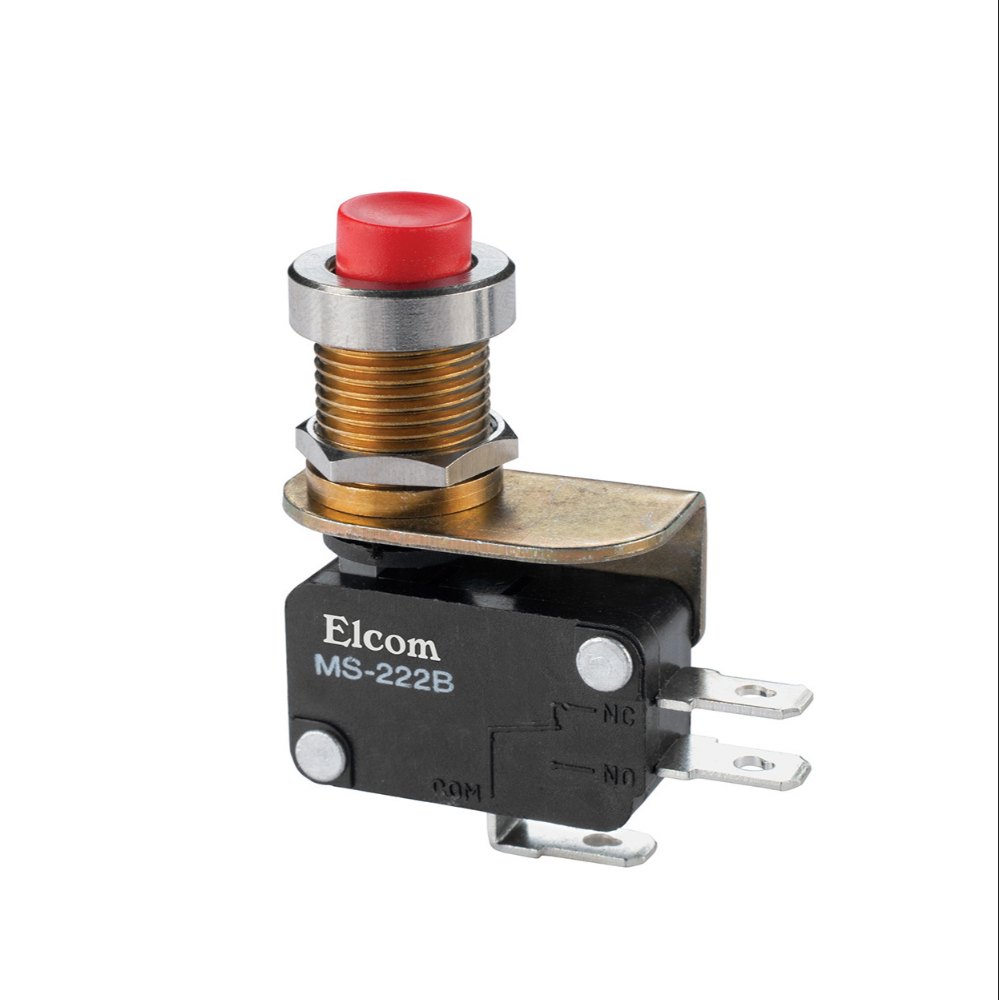

MS-222B Momentary Micro Switch 6Amp
The MS-222B Micro Switch is a compact and reliable panel-mount momentary micro switch with mounting bracket, designed for precise switching and position sensing in industrial and electronic applications. Rated at 6A, 250VAC, it features SPDT (NO/NC) contacts, silver-plated terminals, a rugged engineering thermoplastic housing, and a long mechanical and electrical life. It is widely used in control panels, automation systems, machinery, home appliances, and safety interlock applications.
(
No Reviews )
₹ 106.20
Tags ms-222b
micro
momentary
switch
momentary switch
ms-222b momentary micro switch
No Cancellation
No Returnable
Product Details
| : |
Add FAQ
| Parameter | Specification |
|---|---|
| Model | MS-222B |
| Product Type | Micro Switch |
| Switch Function | Momentary |
| Contact Arrangement | SPDT (1NO + 1NC) |
| Actuator Type | Standard Push Button with Mounting Bracket |
| Current Rating | 6 A |
| Voltage Rating | 250 VAC |
| Mounting Style | Panel Mount with Bracket |
| Terminal Type | Solder Type / Snap-on 4.8 mm |
| Contact Resistance | ≤ 10 mΩ (Initial) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | 1 kVAC for 1 minute |
| Electrical Life | 100,000 Switching Cycles (Minimum) |
| Mechanical Life | 100,000 Switching Cycles (Minimum) |
| Operating Temperature | -20°C to +85°C |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Housing Material | Engineering Thermoplastic |
| Terminal Material | Brass, Tin Plated |
| Contact Material | Silver Alloy |
| Available Actuator Colours | Red, Black, Green |
| Reference Standard | IEC 61058-1 |
| Applications | Industrial Automation, Control Panels, Home Appliances, Machinery, Safety Interlocks, Position Sensing Equipment |
