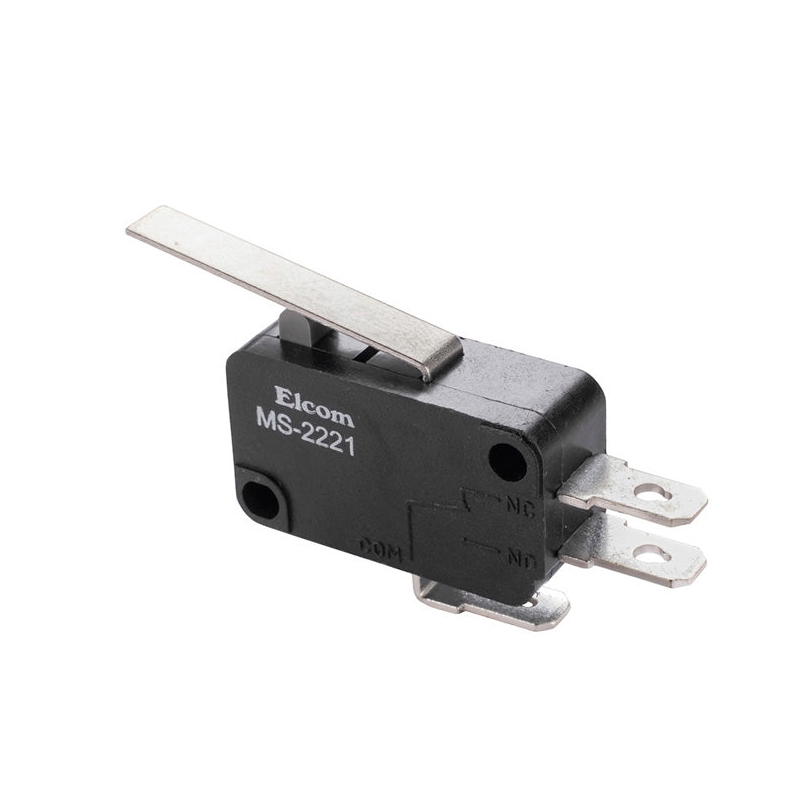

MS-2221 Micro Switch 6Amp

The MS-2221 Micro Switch is a compact and durable screw-mount momentary micro switch featuring a short lever actuator for accurate position detection and control. Rated at 6A, 250VAC, it provides SPDT (NO/NC) contacts, low contact resistance, and a long mechanical and electrical life. Its rugged engineering thermoplastic body makes it ideal for industrial automation, home appliances, machinery, control panels, limit sensing, and electronic equipment.

( No Reviews )

₹ 76.70

Order From Whatsapp

Tags ms-2221 micro switch micro switch ms-2221 micro switch

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	MS-2221
Product Type	Micro Switch
Switch Function	Momentary
Contact Arrangement	SPDT (NO/NC)
Actuator Type	Short Lever
Current Rating	6 A
Voltage Rating	250 VAC
Mounting Style	Screw Mount
Terminal Type	Solder Type / PCB Type
Operating Force	0.40 kg Max.
Contact Resistance	≤ 10 mΩ (Initial)
Insulation Resistance	≥ 100 MΩ at 500 VDC
Dielectric Strength	1 kVAC for 1 minute
Electrical Life	100,000 Switching Cycles (Minimum)
Mechanical Life	100,000 Switching Cycles (Minimum)
Operating Temperature	-20°C to +85°C
Soldering Temperature	270°C for 5 seconds (Max.)
Body Material	Engineering Thermoplastic
Terminal Material	Brass, Tin/Silver Plated
Contact Material	Silver Alloy
Reference Standard	IEC 61058-1
Applications	Industrial Automation, Limit Switches, Home Appliances, Control Panels, Machinery, Position Sensing, Electronic Equipment
