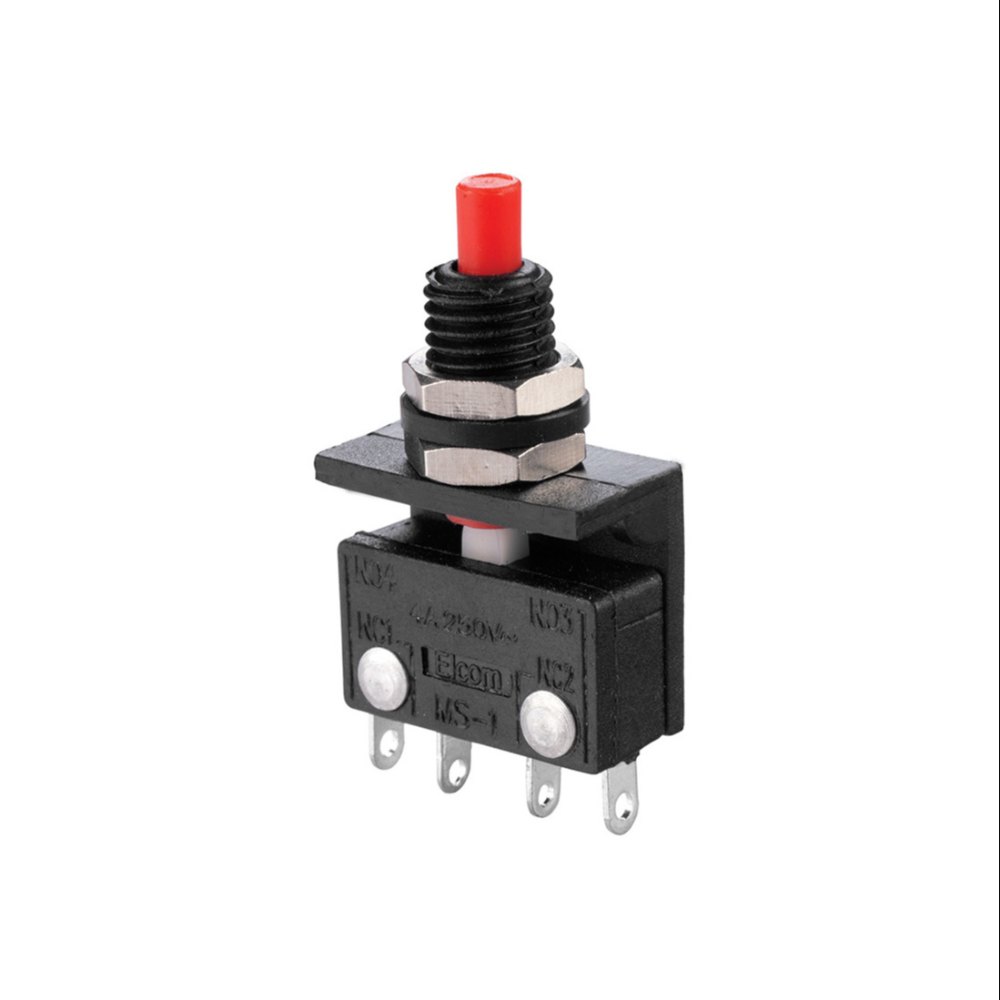

PMS-1 Micro Switch 4Amp

The PMS-1 Push Button Micro Switch is a compact and reliable panel-mount momentary SPDT micro switch featuring a pin-type actuator for precise switching operations. Rated at 4A, 250VAC, it is designed with silver-plated contacts, solder terminals, and a durable polyamide housing to ensure long-lasting performance. It is widely used in industrial control panels, instrumentation, power supplies, automation systems, home appliances, and electronic equipment.

( No Reviews )

₹ 53.10

Order From Whatsapp

Tags micro Switch micro switch pms-1 pms-1 micro switch

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	PMS-1
Product Type	Panel Mount Push Button Micro Switch
Switch Function	Momentary
Contact Arrangement	SPDT (1NO + 1NC)
Actuator Type	Pin Actuated
Current Rating	4 A
Voltage Rating	250 VAC
Mounting Style	Panel Mount
Mounting Method	Threaded Panel Mount (M8)
Terminal Type	Solder Type
Contact Resistance	≤ 10 mΩ (Initial)
Insulation Resistance	≥ 100 MΩ at 500 VDC
Dielectric Strength	1 kVAC for 1 minute
Electrical Life	10,000 Switching Cycles (Minimum)
Mechanical Life	50,000 Switching Cycles (Minimum)
Operating Temperature	-20°C to +85°C
Soldering Temperature	270°C for 5 Seconds (Max.)
Housing Material	Polyamide
Terminal Material	Brass, Silver Plated
Contact Material	Copper, Silver Plated
Actuator Colour	Red
Reference Standard	IEC 61058-1, UL 1054
Compliance	CE, RoHS (On Request)
Applications	Industrial Control Panels, Power Supplies, Instrumentation, Automation Systems, Home Appliances, Electronic Equipment
